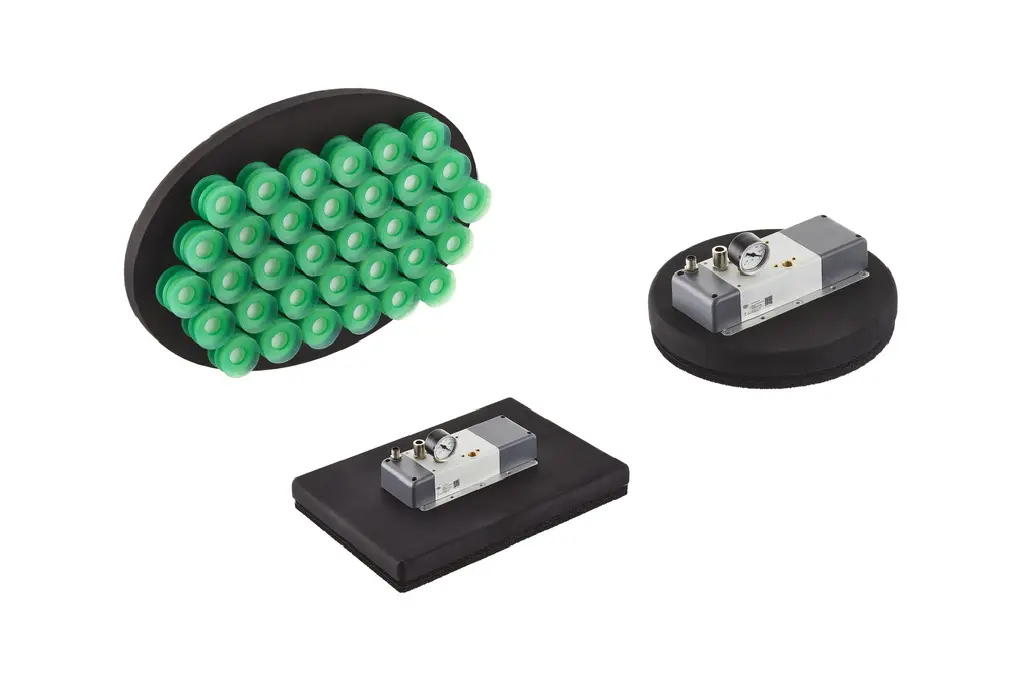

FQE / FQE-V Area Vacuum Gripper
Manufacturer: Schmalz (J. Schmalz GmbH)
Cobot area gripper
The FQE-V Xc is a flexible area gripper designed for handling products of various sizes and geometries, suitable for collaborative robots and fully automated applications. It features integrated vacuum generation and is ideal for pick-and-place tasks in logistics, packaging, and other industries.
Price: Price $2,678.31-$5,914.35 (8 priced variants)
Specifications
- Max Payload
- 35 kg
- Gripping Surface Dimensions
- 110 x 230 mm to 400 x 280 mm
- Height
- 92.6 mm (230x120), 86.3 mm (230x120 O20), 115.3 mm (400x280), 86.3 mm (400x280 O20), 92.6 mm (280x280), 86.3 mm (280x280 O20)
- Suction Cup Type
- Bellows suction cups SPB2
- Suction Cup Diameter
- 20 mm (for 230x120), 40 mm (for 400x280)
- Number of Suction Cells
- 42 (230x120), 48 (230x120 O20), 45 (400x280), 34 (400x280 O20), 56 (280x280), 31 (280x280 O20)
- Number of Ejectors
- 3
- Valve Type
- Flow restrictor
- Nozzle Diameter
- 0.8 mm
- Control Valve
- Normally open
- Design Vacuum Generator
- Ejector module SEP
- HRC Safe
- Yes
