Schmalz part

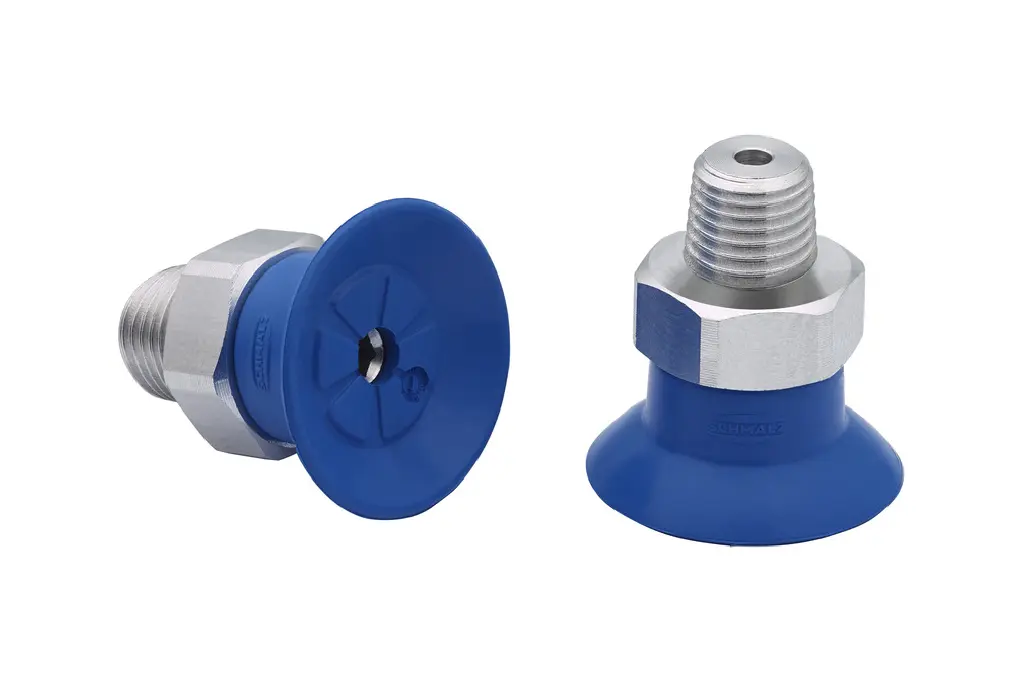

SUF 25 HT1-60 NPT1/4-AG
Part no.: 10.01.01.15041
Flat suction cup (round) for process safe handling of smooth or slightly rough surfaces
Price
$17.16
excl. VAT, shipping & packagingSpecifications
| Size | 25 |
|---|---|
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Product family | SUF |
Product family
Suction area (Ø) from 1 mm to 100 mm
| Diameter Dmax(S) | 1.1 – 108 mm |
|---|---|
| Diameter Ds | 1 – 100 mm |
| Height H | 4.6 – 40 mm |
| Spring stroke Z | 0.1 – 7.5 mm |
| Pull-off force | 0.03 – 402 N |
| Volume | 0 – 46.4 cm³ |
| Workpiece radius min. (convex) | 2 – 200 mm |
| Size | 1 – 100 |
| Suction cup material | Nitrile rubber NBR, Silicone SI, High temperature material HT1, Nitrile rubber NBR-ESD, Silicone SI conductive … |
