Schmalz part

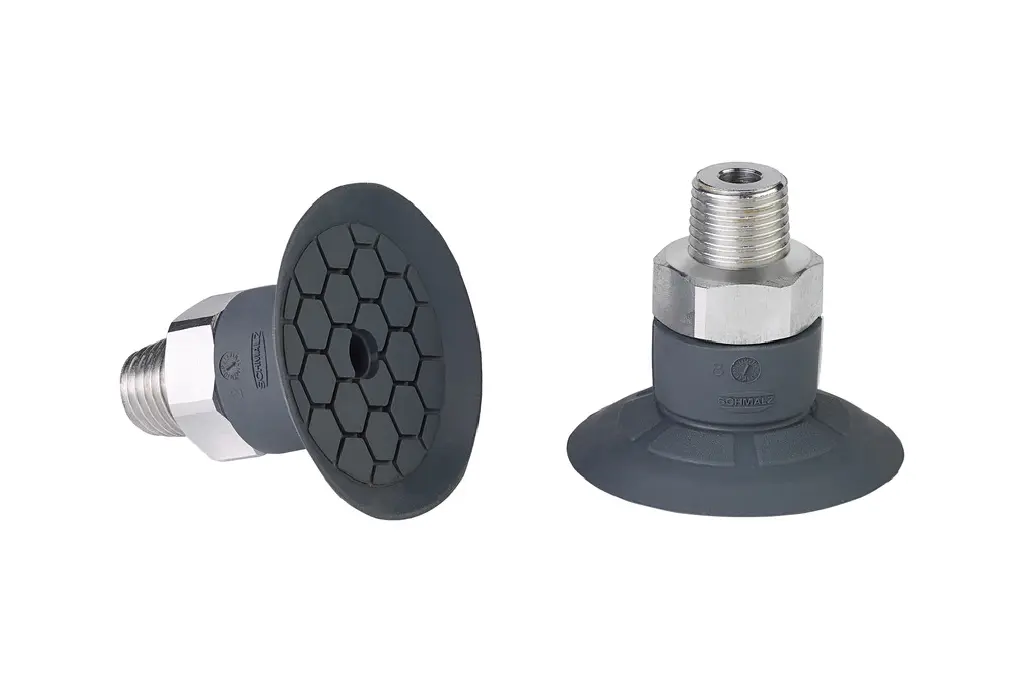

SFF 30 EPDM-45 NPT1/4-AG
Part no.: 10.01.01.14994
Flat suction cup (round) for dynamic handling of thin and flexible workpieces
Price
$26.98
excl. VAT, shipping & packagingSpecifications
| Size | 30 |
|---|---|
| Suction cup material | EPDM |
| Material hardness [Shore A] | 45 (Shore A) |
| Product family | SFF |
Product family
Suction area (Ø) from 8 mm to 60 mm
| Diameter Dmax(S) | 8.5 – 64 mm |
|---|---|
| Diameter Ds | 8 – 60 mm |
| Nominal diameter dn | 1.8 – 4.1 mm |
| Thread G1 | M5-AG, G1/8-AG, G1/8-IG, G1/4-AG, G1/4-IG … |
| Thread length LG1 | 4.7 – 12 mm |
| Height H | 11 – 46.5 mm |
| Key width SW1 | 8 – 22 mm |
| Spring stroke Z | 0.5 – 4 mm |
| Suction force (-600mbar) | 1.5 – 90 N |
