Schmalz part

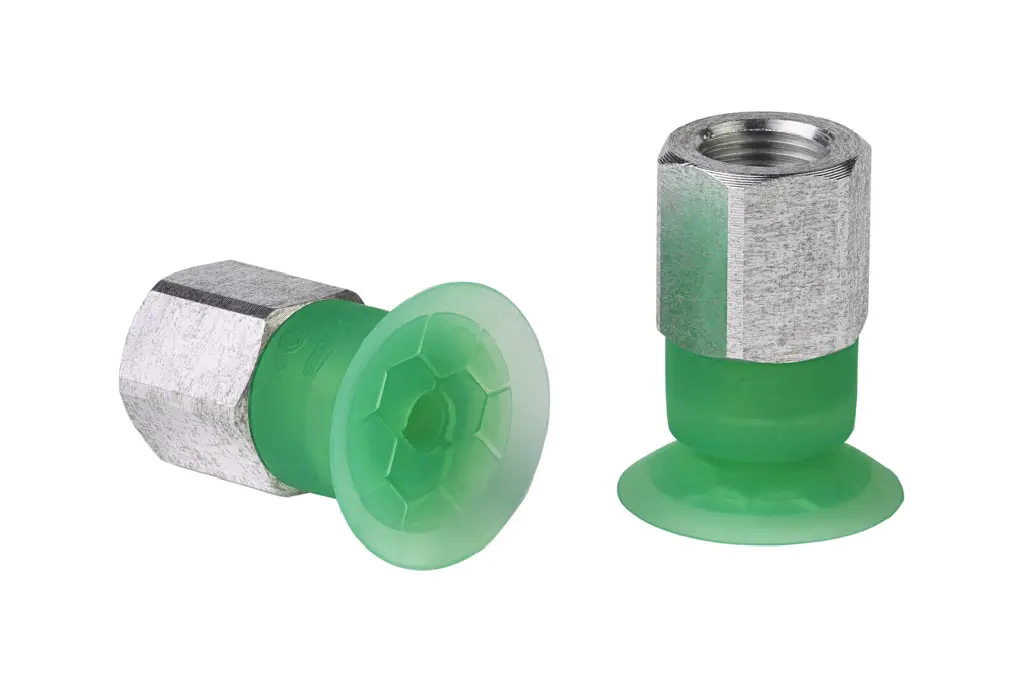

SFF 25 SI-55 NPT1/8-IG
Part no.: 10.01.01.14975
Flat suction cup (round) for dynamic handling of thin and flexible workpieces
Price
$21.37
excl. VAT, shipping & packagingSpecifications
| Size | 25 |
|---|---|
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Product family | SFF |
| Material characteristics | FDA-compatible |
Product family
Suction area (Ø) from 8 mm to 60 mm
| Diameter Dmax(S) | 8.5 – 64 mm |
|---|---|
| Diameter Ds | 8 – 60 mm |
| Nominal diameter dn | 1.8 – 4.1 mm |
| Thread G1 | M5-AG, G1/8-AG, G1/8-IG, G1/4-AG, G1/4-IG … |
| Thread length LG1 | 4.7 – 12 mm |
| Height H | 11 – 46.5 mm |
| Key width SW1 | 8 – 22 mm |
| Spring stroke Z | 0.5 – 4 mm |
| Suction force (-600mbar) | 1.5 – 90 N |
