Schmalz part

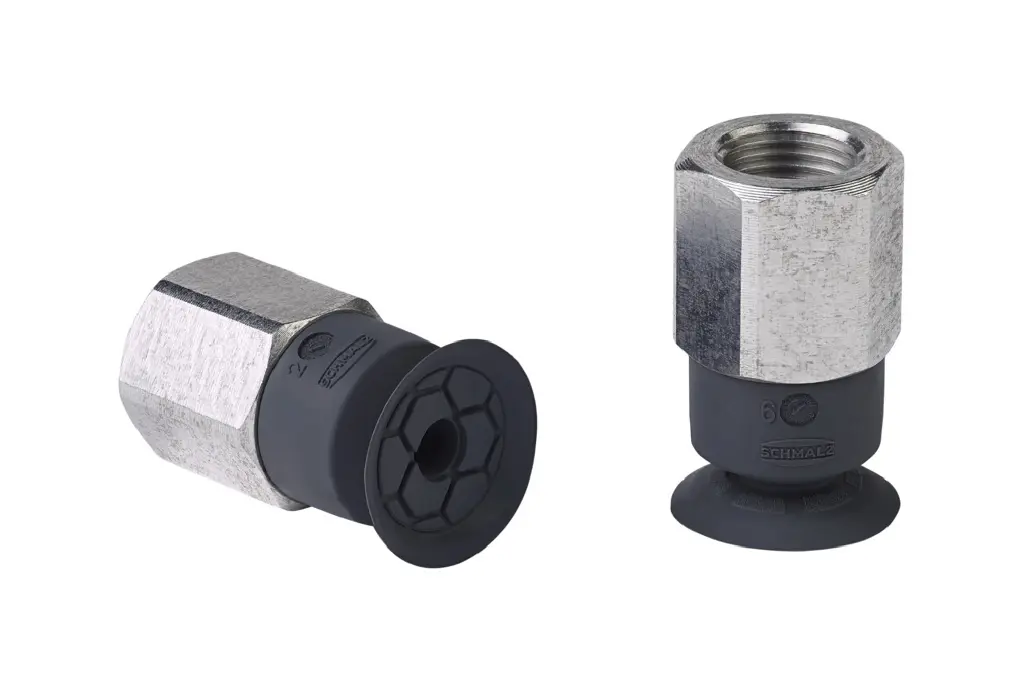

SFF 15 EPDM-45 NPT1/8-IG
Part no.: 10.01.01.14952
Flat suction cup (round) for dynamic handling of thin and flexible workpieces
Price
$17.48
excl. VAT, shipping & packagingSpecifications
| Size | 15 |
|---|---|
| Suction cup material | EPDM |
| Material hardness [Shore A] | 45 (Shore A) |
| Product family | SFF |
Product family
Flat suction cups with a round shape are particularly suited for handling of flat workpieces. Suction cups grip the workpiece fast and precisely due to their flat shape and small volume.
| Weight | 0 – 1051 g |
|---|---|
| Diameter Ds | 1 – 400 mm |
| Height H | 1.6 – 43 mm |
| Size | 1 – 400 |
| Suction cup material | Nitrile rubber NBR, Silicone SI, Polyurethane PU, High temperature material HT2, Fluorine rubber FPM … |
| Spring stroke Z | 0.1 – 25 mm |
| Diameter Dmax(S) | 1.1 – 402.4 mm |
| Product family | PFG, SGA, SPL-HT, SGP, DR-SPU … |
| Material hardness [Shore A] | 15 – 72 Shore A |
