Schmalz part

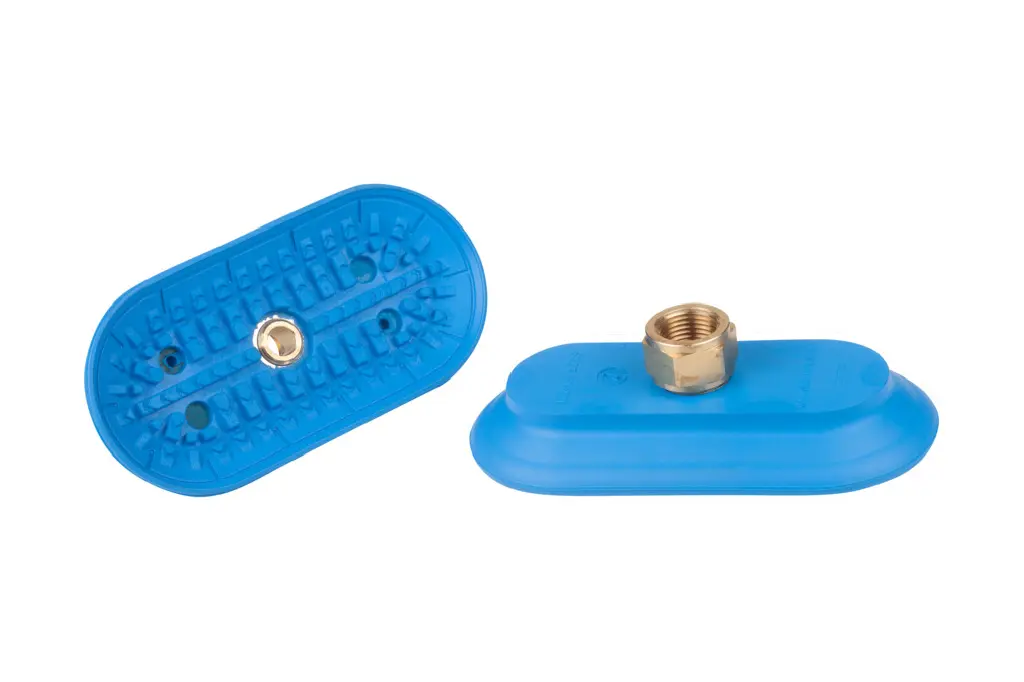

SAOF 120x60 NBR-45 NPT3/8-IG
Part no.: 10.01.05.00761
Flat suction cup (oval) for very dynamic handling of smooth and oily workpieces
Price
$58.10
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 120x60 |
|---|---|
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 45 (Shore A) |
| Nipple material | Brass |
| Connection | NPT3/8-IG |
Product family
Flat suction cups with an oval shape are designed for long and narrow workpieces. Suction cups grip the workpiece fast and precisely due to their flat shape and small volume.
| Weight | 0.1 – 27 g |
|---|---|
| Nominal diameter dn | 1.2 – 4 mm |
| Suction cup width Bs | 2 – 29 mm |
| Lmax.(S) | 4.5 – 92.5 mm |
| Ls | 4 – 89 mm |
| Height H | 6 – 21 mm |
| Spring stroke Z | 0.5 – 12.8 mm |
| Suction cup material | Silicone SI-HD, Nitrile rubber NBR, Nitrile rubber NBR-conductive, High temperature material HT1, Nitrile rubber NBR-ESD … |
| Dimension (LxW) | 12x4, 7x3.5, 4x2, 70 x 25, 15x5 … |
