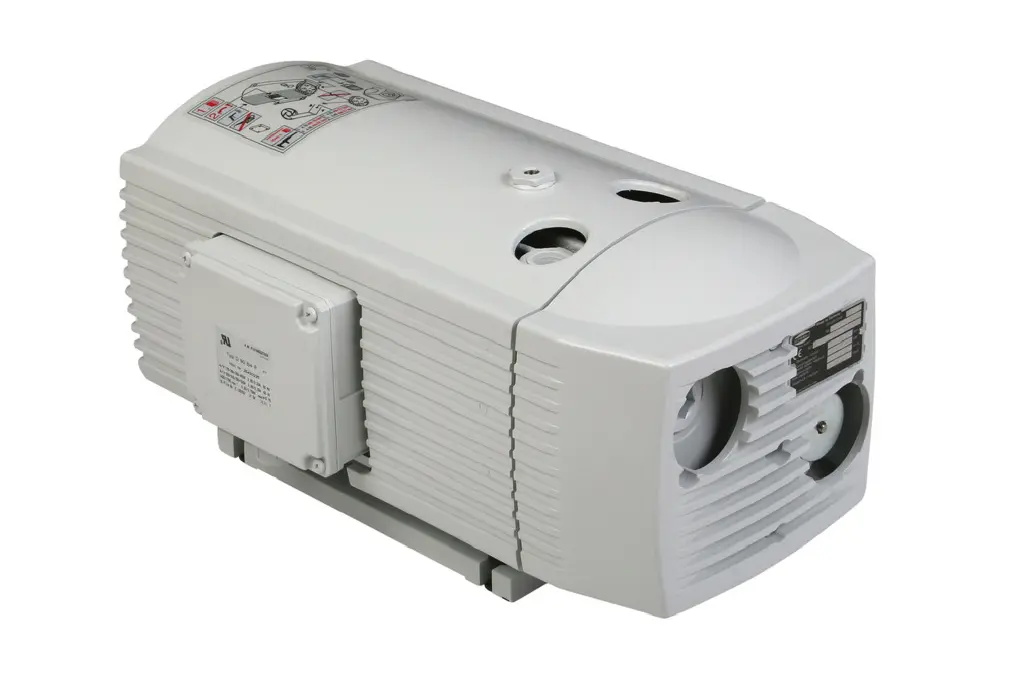

EVE-TR-X
Manufacturer: Schmalz (J. Schmalz GmbH)
Dry-running pump, higher vacuum
The EVE-TR-X is a dry-running vacuum pump designed for universal use in various applications, featuring a suction rate ranging from 10 m³/h to 129 m³/h and a maximum vacuum of 92%. It operates with a compact design and includes an integrated cooling fan for efficient heat dissipation.
Price: Price $4,685.14-$24,604.73 (18 priced variants; 6 in stock)
Specifications
- Suction Rate (50 Hz)
- 10 to 129 m³/h
- Max Vacuum
- 92%
- Rated Power (50 Hz)
- 0.37 to 1.25 kW
- Rated Power (60 Hz)
- 0.45 to 1.5 kW
- Sound Pressure Level (50 Hz)
- 60 to 67 dB(A)
- Weight
- 16 to 39.5 kg
- Voltage (50 Hz)
- 175 - 260 / 300 - 450 V
- Voltage (60 Hz)
- 202 - 300 / 350 - 520 V
- Design
- Dry-running with or without additional filter
- Current Type
- Three phase A.C.
