Schmalz part

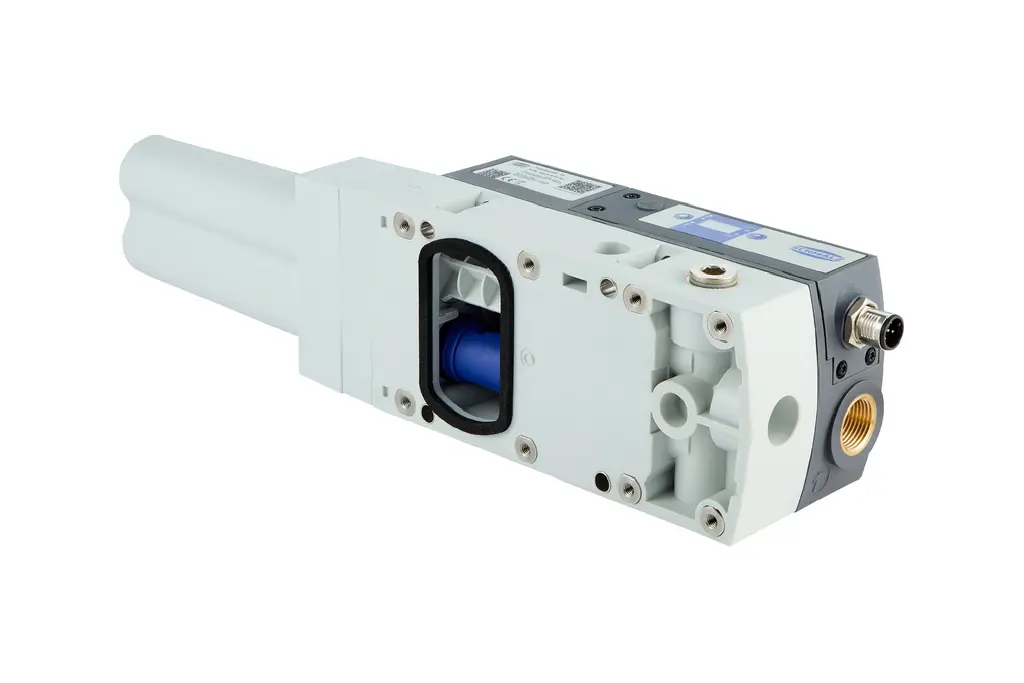

SCPLc 50 HF G FA NO PNP
Part no.: 10.02.02.07581
Compact ejector with multi-stage nozzle and integr. valve technology and vacuum switch
Price
$1,113.84
excl. VAT, shipping & packagingSpecifications
| Size | 50 |
|---|---|
| Shape | High flow |
| Thread G1 | G3/8"-F |
| Thread G2 | G3/4"-F |
| Degree of evacuation | 70 (%) |
| Suction rate (max.) | 550 (l/min) |
| Air consumption suction | 210 (l/min) |
| Shape compact ejectors | Flange version with axial exhaust air |
| Control valve | Normally open |
| Electrical connection | Male connect M12, 5 pol |
| Construction vacuum switch | PNP switching |
Product family
Suction rate from 290 l/min to 1,140 l/min
| Suction rate (max.) | 30.6 – 1460 l/min |
|---|---|
| Air consumption suction | 12.6 – 545 l/min |
| Width B | 66 – 129.6 mm |
| Width B2 | 13.8 mm |
| Width B3 | 34 mm |
| Internal diameter d | 5.5 mm |
| Thread G1 | G3/8"-F, NPT3/8"-F |
| Thread G3 | M4-F |
| Thread G5 | M12x1-M |
