Schmalz part

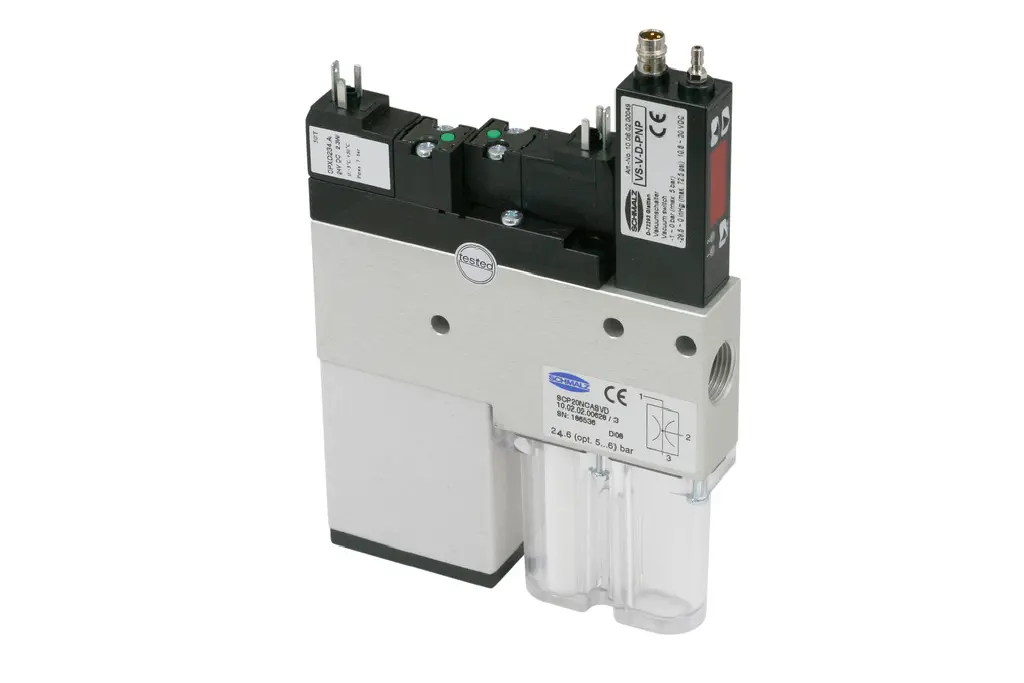

SCP 20 NO AS VD
Part no.: 10.02.02.00627
Compact ejector with integrated functions
Price
$2,249.38
excl. VAT, shipping & packagingSpecifications
| Nozzle diameter | 2 (mm) |
|---|---|
| Suction rate (max.) | 116 (l/min) |
| Air consumption suction | 190 (l/min) |
| Pressure range (operating pressure) [bar] | 5.0 ... 6.0 bar |
| Control valve | Normally open |
| Shape compact ejectors | With blow-off system |
| Operation mode | digital vacuum switch |
Product family
In addition to the functions of a basic ejector, compact ejectors are equipped with a suction valve, a blow off valve, a vacuum switch and a filter.
| Length L | 2 – 1075 mm |
|---|---|
| Width B | 14 – 87 mm |
| Thread G1 | M4-F, G1/2"-F, G3/8"-F, G1/4"-F, M7-F … |
| Internal diameter d | 3.5 – 14 mm |
| Height H | 6 – 50 mm |
| Hole spacing X1 | 20 – 167.4 mm |
| Outside diameter D | 3 – 16.5 mm |
| Length L1 | 8 – 148.5 mm |
| Weight | 0.11 – 807 g |
