Schmalz part

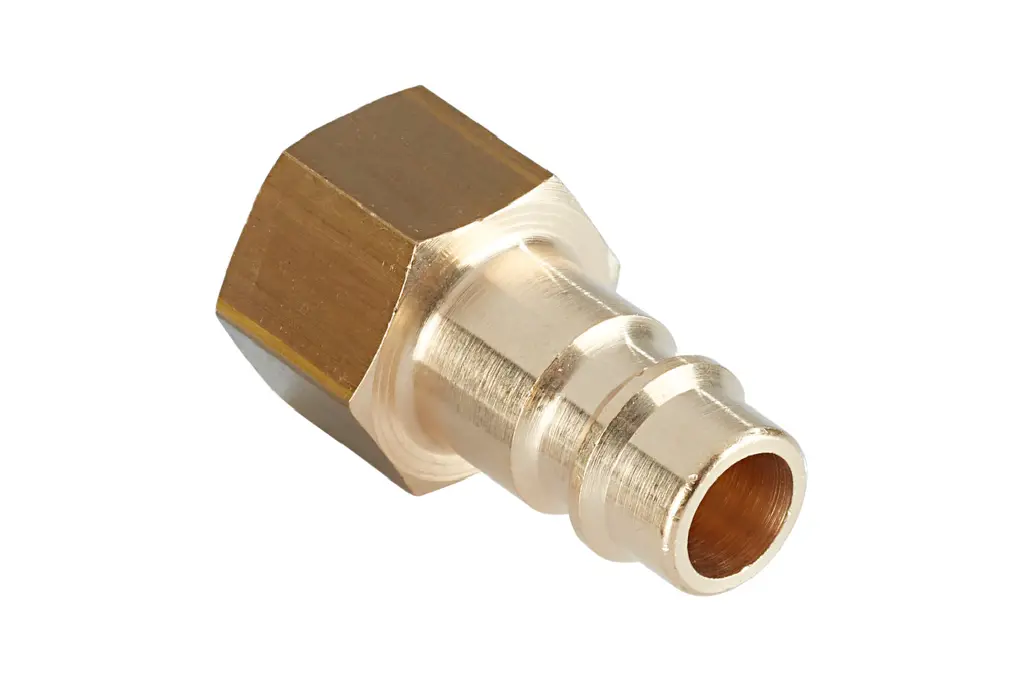

EINS-NIP G1/4-IG 7.2 MS
Part no.: 10.08.01.00027
Plug-in nipple
Price
Price on request
excl. VAT, shipping & packagingSpecifications
| Thread G1 | G1/4"-F |
|---|---|
| Nominal diameter dn | 7.2 (mm) |
| Material | Brass |
Product family
Vacuum systems for use directly on the MDF wear plate of a CNC machining center with a nesting machine table.
| Thread G1 | G1/4"-M, G1/4"-F |
|---|---|
| Length L | 34 – 166 mm |
| Nominal diameter dn | 7.2 mm |
| Outside diameter D | 27 mm |
| Thread length LG1 | 9 mm |
| Width B | 113 mm |
| Height H | 6.6 mm |
