Schmalz part

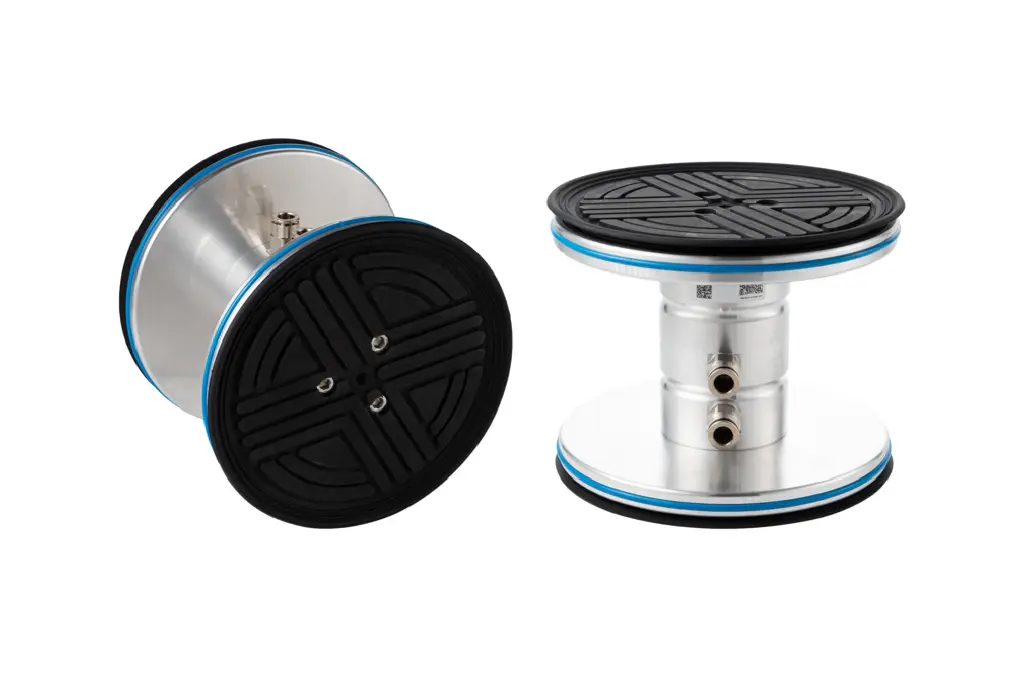

VCBL-GL D150x120
Part no.: 10.01.18.04287
Vacuum block with hose connection for use on smooth tables for glass processing
Price
$242.19
excl. VAT, shipping & packagingSpecifications
| Outside diameter D | 150 (mm) |
|---|---|
| Height H | 120 (mm) |
| Dimension suction plate bottom | Diameter 150 mm |
| Diameter vacuum connection | 8 (mm) |
Product family
Schmalz clamping solutions enable the quick and uncomplicated setup of CNC machining centers for glass processing with flat table. First the vacuum blocks and then the workpiece are fixed for machine processing via two independent vacuum circuits.
| Length L | 14 – 766 mm |
|---|---|
| Outside diameter D | 3.3 – 191 mm |
| Height H | 12 – 16 mm |
| Internal diameter d | 8 – 179 mm |
| Utilization design | Vacuum block VCBL-GL |
| Material hardness [Shore A] | 60 Shore A |
