Schmalz part

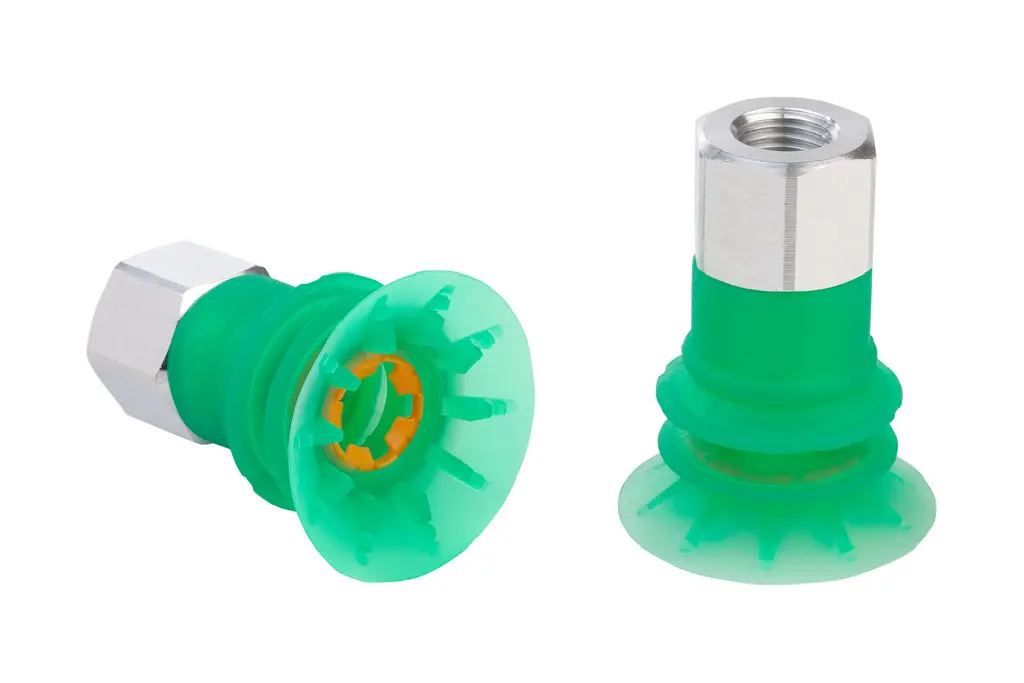

SPB2f 30 SI-55 NPT1/4-IG
Part no.: 10.01.06.05051
Bellows suction cup (round) for very uneven workpieces
Price
$33.70
excl. VAT, shipping & packagingSpecifications
| Size | 30 |
|---|---|
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Thread G1 | NPT1/4"-F |
| Number of folds | 2.5 |
Product family
Suction area (Ø) from 15 mm to 50 mm
| d2 | 4 – 21 mm |
|---|---|
| Nominal diameter dn | 4 – 15 mm |
| Diameter Dmax(S) | 17 – 52 mm |
| Diameter Ds | 15 – 49.7 mm |
| Thread G1 | G1/8"-F, G1/8"-M, G1/4"-M, G1/4"-F, G3/8"-M … |
| Height H | 26.3 – 67.1 mm |
| Thread length LG1 | 7.5 – 16 mm |
| Key width SW1 | 14 – 27 mm |
| Spring stroke Z | 5 – 9.8 mm |
