Schmalz part

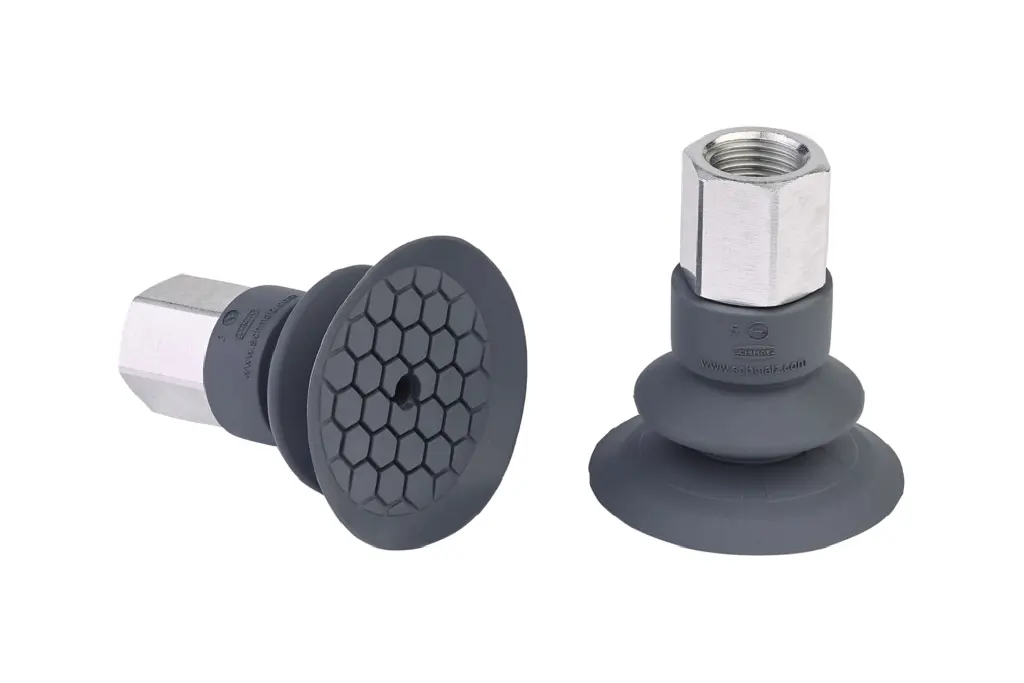

SFB1 40 EPDM-45 NPT1/4-IG
Part no.: 10.01.06.05150
Bellows suction cup (round) for gentle handling of thin and flexible workpieces
Price
$32.35
excl. VAT, shipping & packagingSpecifications
| Size | 40 |
|---|---|
| Suction cup material | EPDM |
| Material hardness [Shore A] | 45 (Shore A) |
| Product family | SFB1 |
Product family
Suction area (Ø) from 10 mm to 60 mm
| Diameter Dmax(S) | 11 – 42 mm |
|---|---|
| Diameter Ds | 10 – 40 mm |
| Nominal diameter dn | 1.8 – 4.1 mm |
| Thread G1 | M5-AG, G1/8-AG, G1/8-IG, G1/4-AG, G1/4-IG … |
| Thread length LG1 | 4.7 – 12 mm |
| Height H | 17.3 – 47 mm |
| Key width SW1 | 8 – 17 mm |
| Spring stroke Z | 2.5 – 10 mm |
| Pull-off force | 2.7 – 39.9 N |
