Schmalz part

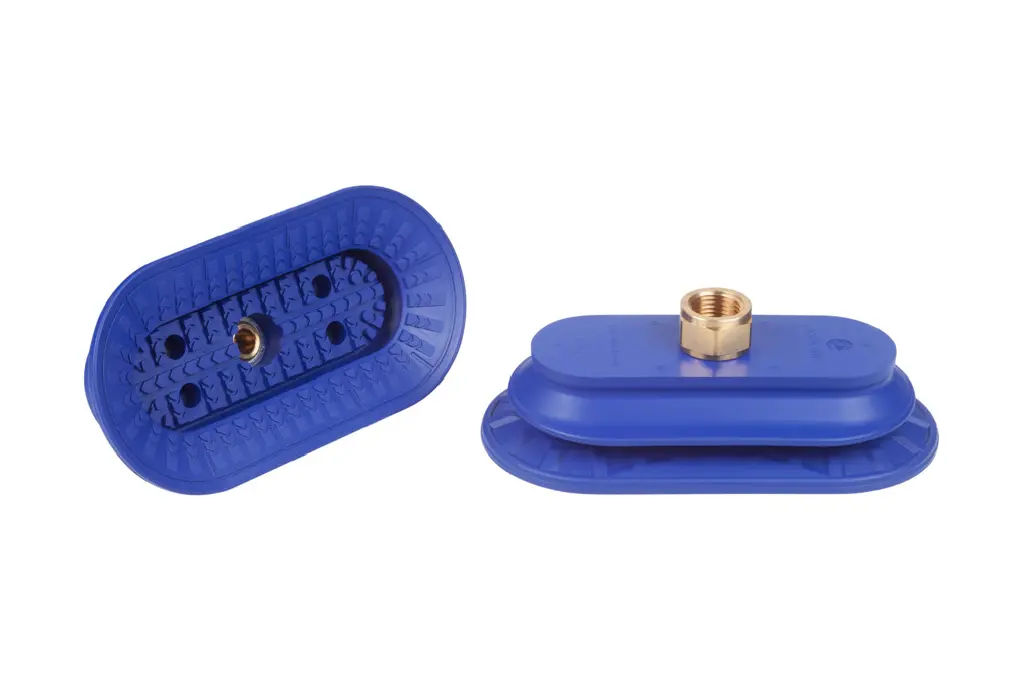

SAOB 140x70 NBR-60 NPT3/8-IG
Part no.: 10.01.06.03078
Bellows suction cup (oval) for high dynamic on curved, oily surfaced workpieces
Price
$67.16
excl. VAT, shipping & packagingSpecifications
| Dimension (LxW) | 140 x 70 |
|---|---|
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Brass |
| Connection | NPT3/8-IG |
| Number of folds | 1.5 |
Product family
Suction area (LxW) from 60 x 30 mm to 140 x 70 mm
| Width B1 | 31 – 67 mm |
|---|---|
| Bmax(S) | 33 – 75 mm |
| Suction cup width Bs | 30.6 – 70.1 mm |
| Nominal diameter dn | 4 – 8 mm |
| Height H | 27 – 47.5 mm |
| Length L1 | 55.7 – 126 mm |
| Lmax.(S) | 63 – 146 mm |
| Ls | 60.6 – 141.1 mm |
| Spring stroke Z | 7 – 16.5 mm |
