Schmalz part

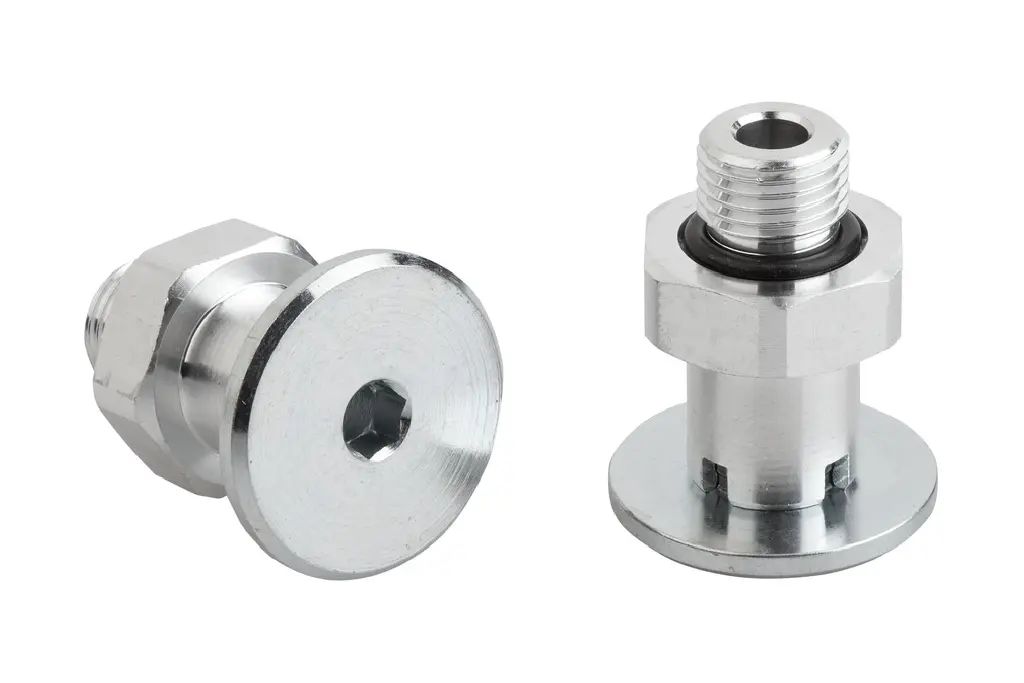

SC 065 NPT1/4-AG L MOD
Part no.: 10.01.06.04933
Connection element for suction cup "SchmalzConnector"
Price
$11.93
excl. VAT, shipping & packagingSpecifications
| Connection type | 065 |
|---|---|
| Connection | NPT1/4-M |
| Length L1 | 36.1 (mm) |
| Fitting length | 8 (mm) |
| Nominal diameter dn | 6.1 (mm) |
| Shape | Self Locking |
Product family
Bellows suction cups with a round shape are particularly suited for handling uneven and arched workpieces. Suction cups grip the workpiece fast and precisely due to their flat shape and small volume.
| Weight | 0.03 – 802.8 g |
|---|---|
| Height H | 4.5 – 86.5 mm |
| Spring stroke Z | 1 – 45.5 mm |
| Number of folds | 1.5 – 4.5 |
| Suction cup material | Nitrile rubber NBR, Silicone SI, Vulkollan VU1, Natural rubber NK, Silicone SI conductive … |
| Diameter Dmax(S) | 4 – 177 mm |
| Diameter Ds | 1.9 – 150 mm |
| Size | 2 – 150 |
| Internal diameter d | 1.7 – 20 mm |
