Schmalz part

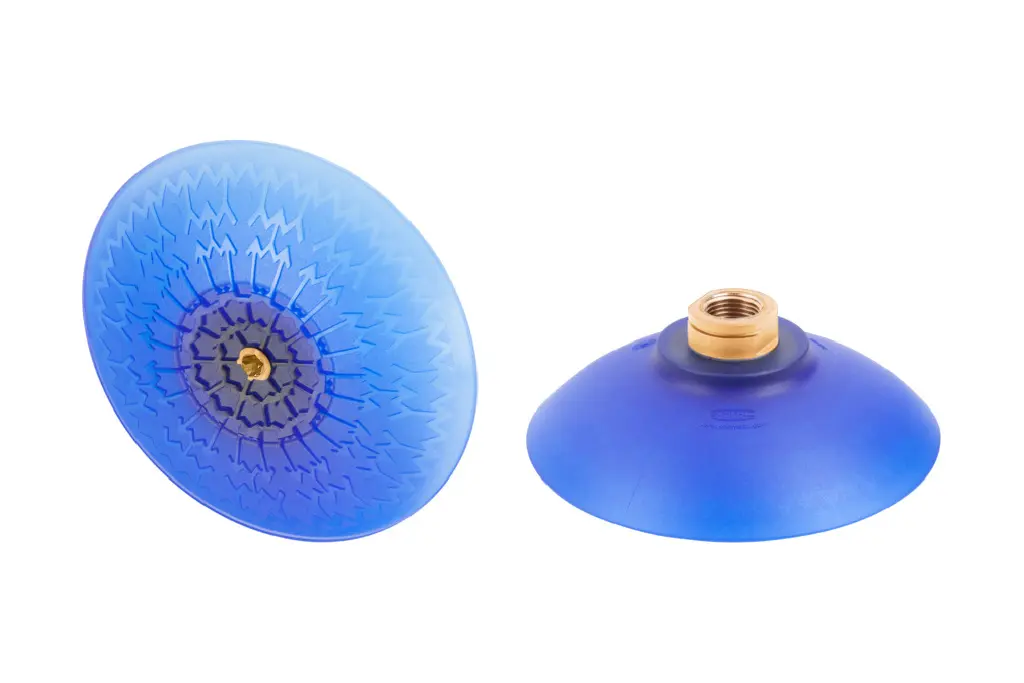

SAX 115 ED-85 NPT3/8-IG
Part no.: 10.01.19.00345
Bell suction cup (round) for best adaptation to strongly curved surfaces
Price
$38.07
excl. VAT, shipping & packagingSpecifications
| Size | 115 |
|---|---|
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 85 (Shore A) |
| Connection | NPT3/8-F |
| Number of folds | 0 |
Product family
Suction area (Ø) from 30 mm to 115 mm
| Nominal diameter dn | 4.1 – 6.75 mm |
|---|---|
| Diameter Dmax(S) | 35.2 – 129.4 mm |
| Diameter Ds | 31.7 – 116 mm |
| Height H | 26 – 49.4 mm |
| Key width SW1 | 22 mm |
| Spring stroke Z | 4.5 – 20.2 mm |
| Suction force (-600mbar) | 39 – 549 N |
| Lateral force | 38 – 390 N |
| Lateral force oily surface | 41 – 584 N |
