Schmalz part

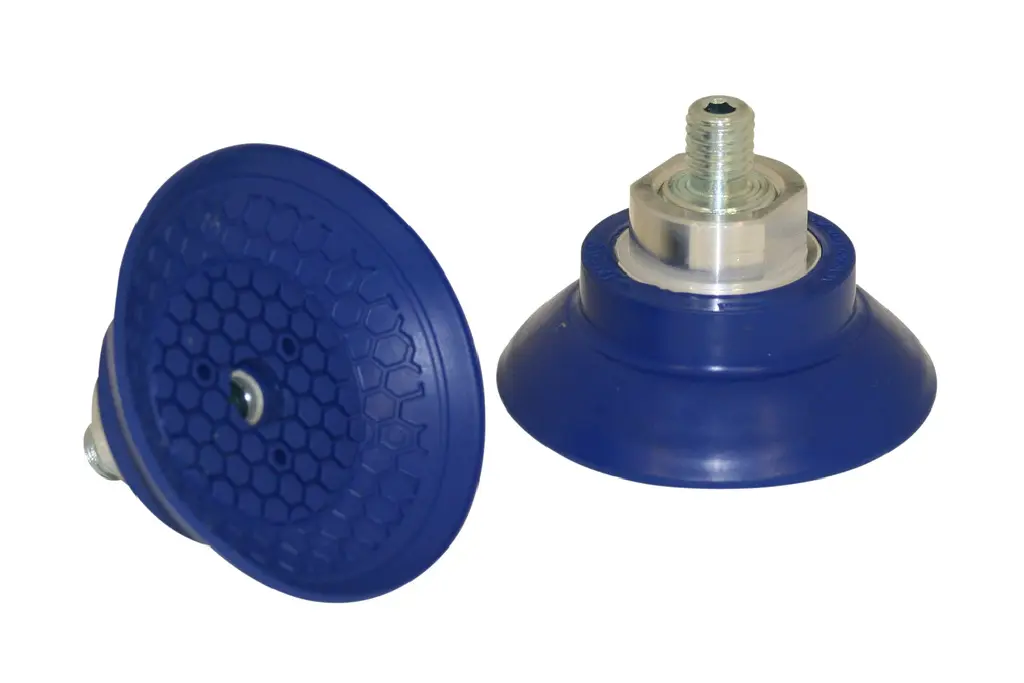

SAG 60 NBR-60 M10-AG
Part no.: 10.01.01.12297
Bell suction cup (round) for best adaptation to strongly curved surfaces
Price
$44.05
excl. VAT, shipping & packagingSpecifications
| Size | 60 |
|---|---|
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Steel |
| Connection | M10-AG |
Product family
Bell suction cup (round) for best adaptation to strongly curved surfaces
| Nominal diameter dn | 4 – 6 mm |
|---|---|
| Diameter Dmax(S) | 51.5 – 90.7 mm |
| Diameter Ds | 47 – 83 mm |
| Height H | 24.5 – 43.2 mm |
| Spring stroke Z | 7.8 – 12.8 mm |
| Suction force (-600mbar) | 68 – 217 N |
| Size | 45 – 80 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 Shore A |
