Schmalz part

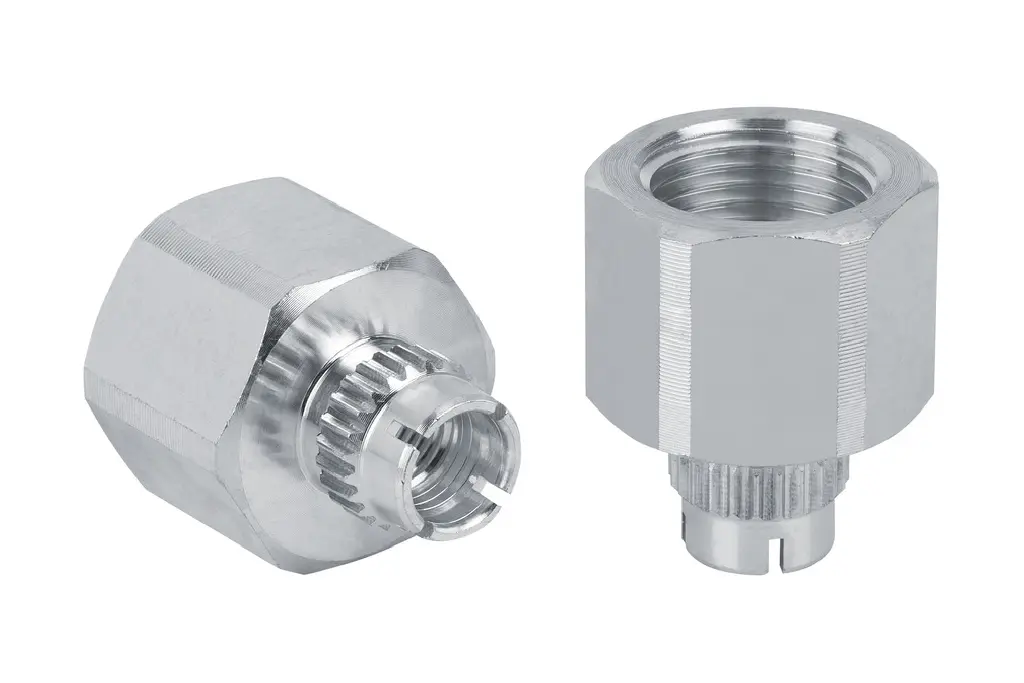

SC-A 045-AR NPT3/8-IG L
Part no.: 10.01.06.03140
Schmalz-Connector upper part
Price
$8.42
excl. VAT, shipping & packagingSpecifications
| Connection type | 045-AR |
|---|---|
| Thread G1 | NPT3/8"-F |
| Length L | 17.2 (mm) |
| Shape | Self Locking |
Product family
The bell-shaped suction cups (oval) enable the handling of narrow and strongly curved workpieces, thanks to the perfect combination of a high stroke and maximum holding force. As a combination of a flexible, bell-shaped suction cup and a flat suction cup with a strong holding force, bell-shaped suction cups adapt perfectly to uneven surfaces and can handle them in a safe process.
| Weight | 3.7 – 42.8 g |
|---|---|
| Material | Aluminum, Brass, Nitrile rubber NBR, Steel |
| Nominal diameter dn | 4.1 – 8.9 mm |
| Length L | 2 – 17.2 mm |
| Outside diameter D2 | 10.5 – 13 mm |
| Length L2 | 11 – 14.8 mm |
| Connection type | 045-AR, 055-AR |
| Shape | Self Locking |
| Key width SW1 | 16 – 22 mm |
