Schmalz part

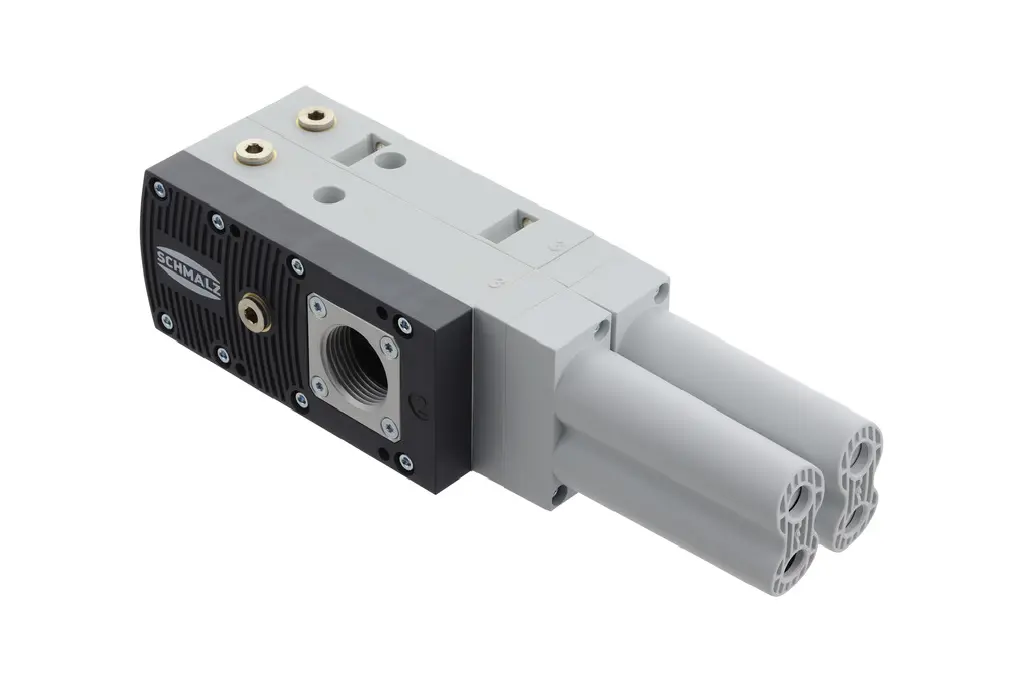

SBPL 75 HF NPT
Part no.: 10.02.01.01654
Basic ejector with maximum suction capacity
Price
$778.55
excl. VAT, shipping & packagingSpecifications
| Size | 75 |
|---|---|
| Shape | High flow |
| Type | NPT |
| Suction rate (max.) | 710 (l/min) |
| Air consumption suction | 230 (l/min) |
| Weight | 1.1 (kg) |
Product family
Due to their small size, the basic ejectors can be used even in confined spaces. Due to the simple design with main body, venturi nozzle and silencer, this ejector is low maintenance and wear-resistant. The ejector's lightweight build makes it particularly suited for use in highly dynamic processes.
| Weight | 1.6 – 590 g |
|---|---|
| Pressure range (operating pressure) [bar] | bar |
| Operating temperature | °C, 0 ... 0 °C |
| Length L | 0.2 – 112.5 mm |
| Width B | 14 – 46 mm |
| Outside diameter D | 15 – 50.3 mm |
| Material | Aluminum, Austenitic stainless steel, Nitrile rubber NBR |
| Length L1 | 51 – 145 mm |
| Nominal diameter dn | 15.5 – 26 mm |
