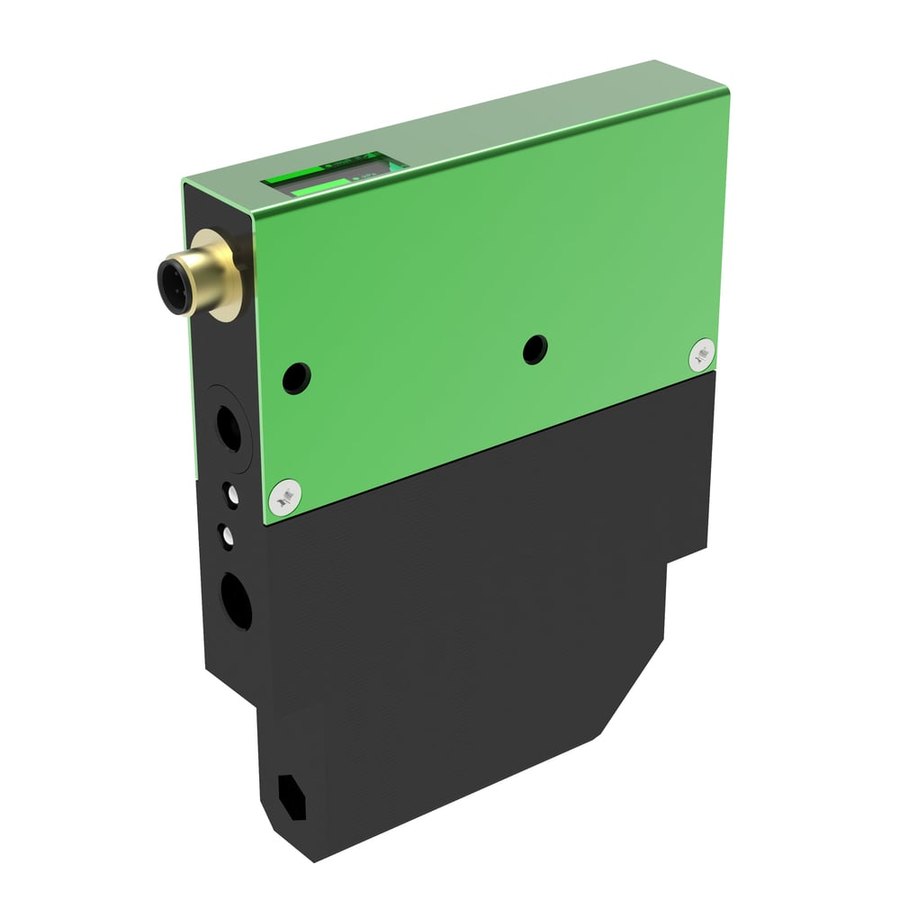

ACP-SX42PES
Manufacturer: Piab
Compact and stackable ejectors
Item number: 0209627; Item number (US): 02.09.627; Material: Al, CuZn, NBR (FKM), PE, SS; Weight, min.: 2.25 lb; Temperature: 14 - 122 °F; Noise level: 80 - 90 dBA; Taric code: 84149000; Current, consumption: 200 mA; Supply voltage: 21.6 - 26.4 VDC; Supply voltage, nominal: 24 VDC; Electric connection: M12 4pin; Feed pressure: 68.17 psi; Feed pressure, max.: 101.53 psi; Feed pressure, optimum: 58.015 - 87.023 psi | Piab account availability (2026-07-25), item 0209627: quantity 1 projected to ship 2026-08-31.
Price: $1,482.00 (Radwell 02.09.627)
Specifications
- Item number
- 0209627
- Item number (US)
- 02.09.627
- Material
- Al, CuZn, NBR (FKM), PE, SS
- Weight, min.
- 2.25 lb
- Temperature
- 14 - 122 °F
- Noise level
- 80 - 90 dBA
- Taric code
- 84149000
- Current, consumption
- 200 mA
- Supply voltage
- 21.6 - 26.4 VDC
- Supply voltage, nominal
- 24 VDC
- Electric connection
- M12 4pin
- Feed pressure
- 68.17 psi
- Feed pressure, max.
- 101.53 psi
- Feed pressure, optimum
- 58.015 - 87.023 psi
