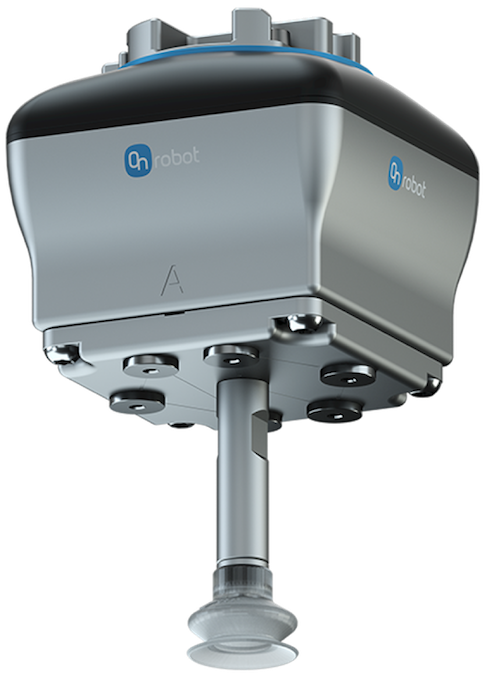

VGC10 Robotic Vacuum Gripper
Manufacturer: OnRobot (Denmark)
Electric vacuum (built-in pump, no air)
The VGC10 is a compact electric vacuum gripper designed for handling objects up to 15 kg without the need for an external air supply. It features customizable arms and independent air channels for dual gripping, making it suitable for tight spaces and various applications.
Price: $3,709 USD (RG Group p/n 102844, Jul 2026)
Specifications
- Payload
- 15 kg max (≈6 kg w/ standard attachment)
- Grip Time
- 0.35 s
- Release Time
- 0.20 s
- Dimensions
- 100×100 mm
- Weight
- 0.814 kg
- IP Rating
- IP54
- Voltage
- 24 V
- Suction Cups
- Ships with 8×15 + 6×30 + 4×40 mm cups
- Channels
- 2 independent channels
