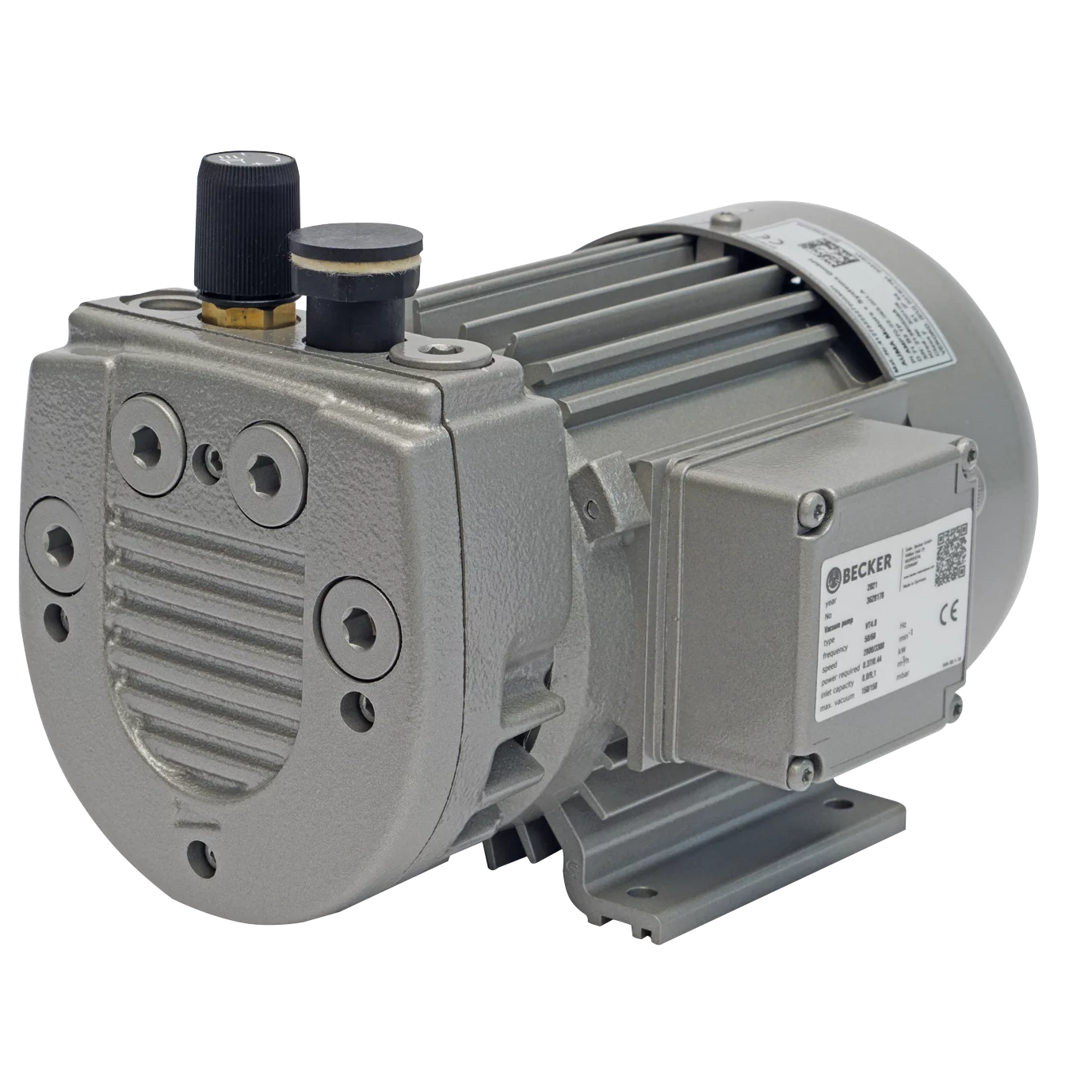

Rotary vane pump dry-running, 9,1 m³/h, 3-phase for US and CA, Becker VT 4.8
Manufacturer: FIPA GmbH (Germany)
rotary vane pump dry running 8 m h becker vt 4 8
dry-running, air-cooled, motor 3-phase 0.44 kW (60 Hz), 202-300V/350-520V (60 Hz), suction power 9.1 m³/h (60 Hz), sound pressure level 61 dB(A) (60 Hz), suction connection G3/8", UR(UL), CSA
Price: $1,203.54 (FAMAGA VPT.8A-3-US)
Specifications
- Description Becker
- VT 4.8
- Suction power at 50 Hz
- 8.0 m³/h
- Suction power at 60 Hz
- 9.1 m³/h
- Item no. Becker
- G050868
- Motor type
- 3-phasig especially for the North American market
- Rated power at 50 Hz
- 0.37 kW
- Rated power at 60 Hz
- 0.44 kW
- Power supply at 50 Hz
- 175-260 / 300-450 V
- Power supply at 60 Hz
- 202-300 / 350-520 V
- Sound pressure level at 50 Hz
- 58.0 dB(A)
- Sound pressure level at 60 Hz
- 61.0 dB(A)
- Current consumption at 50 Hz
- 2.35 / 1.36 A
- Current consumption at 60 Hz
- 2.40 / 1.40 A
- Note: Becker motor design according to data sheet Pos #
- 03
