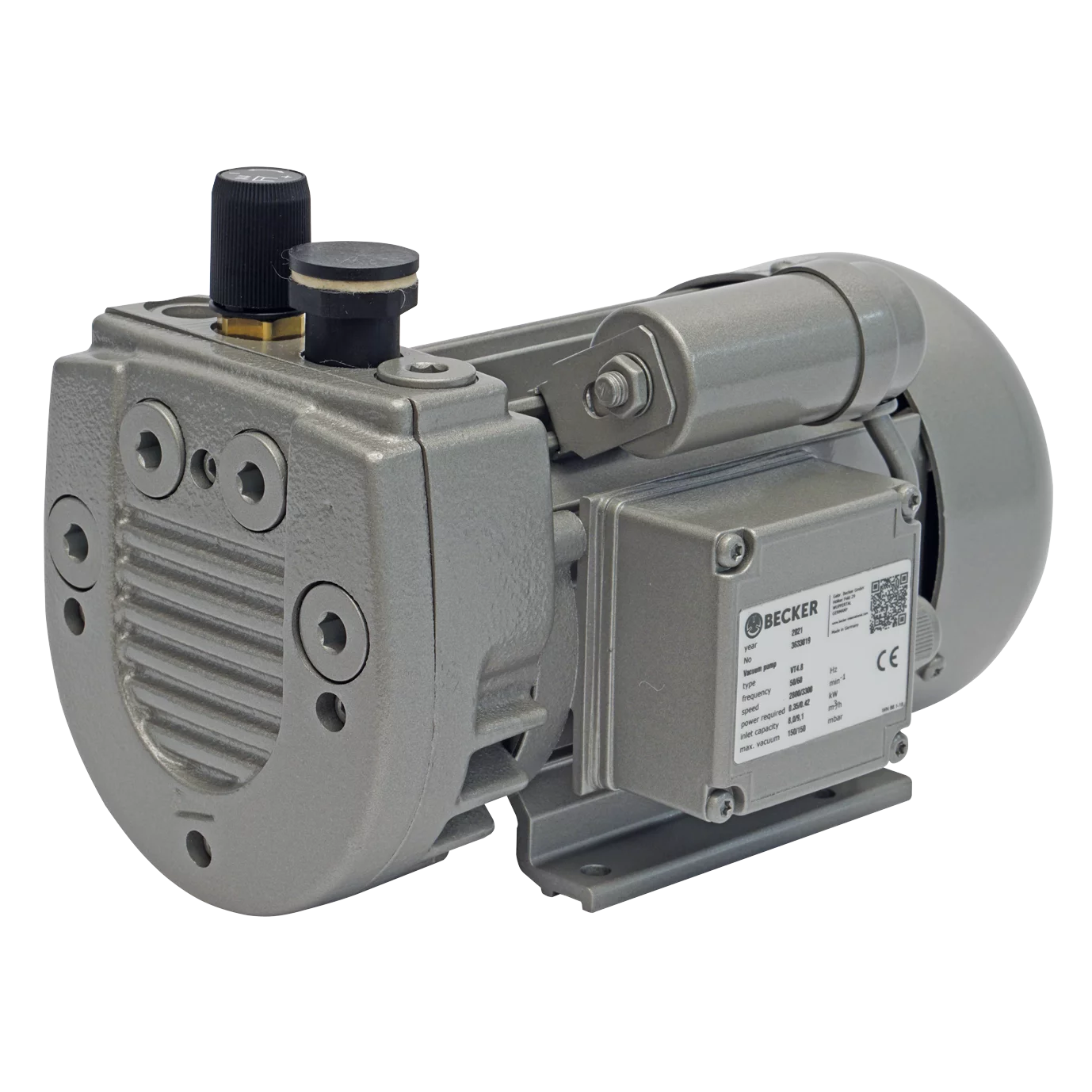

Rotary vane pump dry-running, 8 m³/h, 1-phase, ecker VT 4.8
Manufacturer: FIPA GmbH (Germany)
rotary vane pump dry running 8 m h becker vt 4 8
dry-running, air-cooled, motor 1-phase 0.35/0.42 kW (50/60 Hz), 230/230V (50/60 Hz), suction capacity 8/9.1 m³/h (50/60 Hz), sound pressure level 58/61 dB(A) (50/60 Hz), suction connection G3/8".
Price: $1,072.08 (FAMAGA VPT.8A-1)
Specifications
- Description Becker
- VT 4.8
- Suction power at 50 Hz
- 8.0 m³/h
- Suction power at 60 Hz
- 9.1 m³/h
- Item no. Becker
- G009378
- Motor type
- 1-phase
- Rated power at 50 Hz
- 0.35 kW
- Rated power at 60 Hz
- 0.42 kW
- Power supply at 50 Hz
- 230 ±10% V
- Power supply at 60 Hz
- 230 ±10% V
- Sound pressure level at 50 Hz
- 58.0 dB(A)
- Sound pressure level at 60 Hz
- 61.0 dB(A)
- Current consumption at 50 Hz
- 3.9 A
- Current consumption at 60 Hz
- 3.4 A
- Note: Becker motor design according to data sheet Pos #
- 01
Documentation
