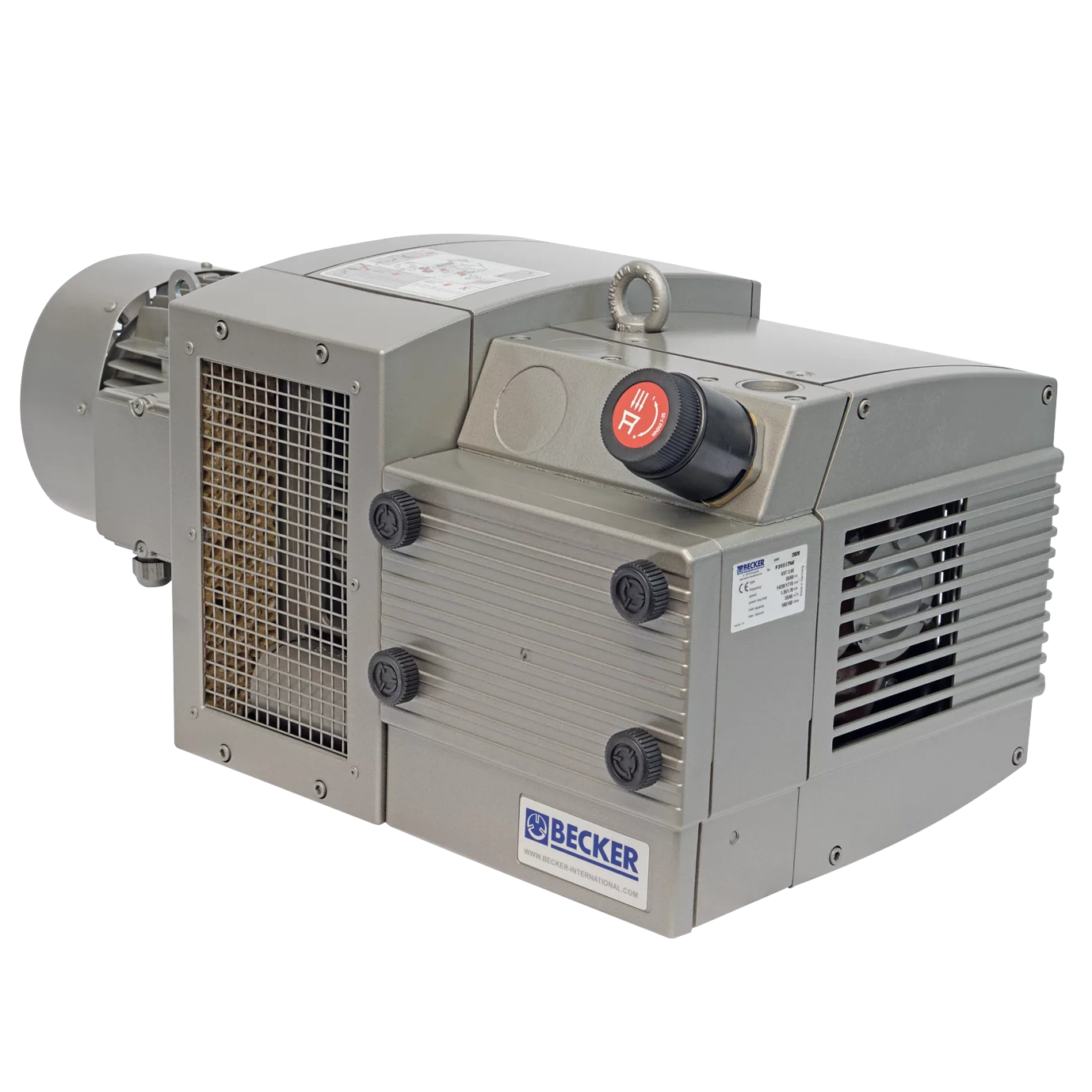

Rotary vane pump dry-running, 55 m³/h 3-phase, Becker KVT 3.60
Manufacturer: FIPA GmbH (Germany)
rotary vane pump dry running 55 m h becker kvt 3 60
dry-running, air-cooled, including integrated suction filter, motor 3-phase 2.2/2.6 kW (50/60 Hz), 230V/400V, suction capacity 55/66 m³/h (50/60 Hz), sound pressure level 71/73 dB(A) (50/60 Hz); suction connection G1".
Price: $6,705.90 (FAMAGA VPT.60A-3-EU)
Specifications
- Description Becker
- KVT 3.60
- Suction power at 50 Hz
- 55.0 m³/h
- Suction power at 60 Hz
- 66.0 m³/h
- Item no. Becker
- G024026
- Motor type
- 3-phasig for the european market
- Rated power at 60 Hz
- 2.6 kW
- Power supply at 50 Hz
- 230 / 400 V
- Power supply at 60 Hz
- 230 / 400 V
- Sound pressure level at 50 Hz
- 71.0 dB(A)
- Sound pressure level at 60 Hz
- 73.0 dB(A)
- Current consumption at 50 Hz
- 8,2 / 4,8 A
- Current consumption at 60 Hz
- 9,0 / 5,2 A
- Note: Becker motor design according to data sheet Pos #
- 01
