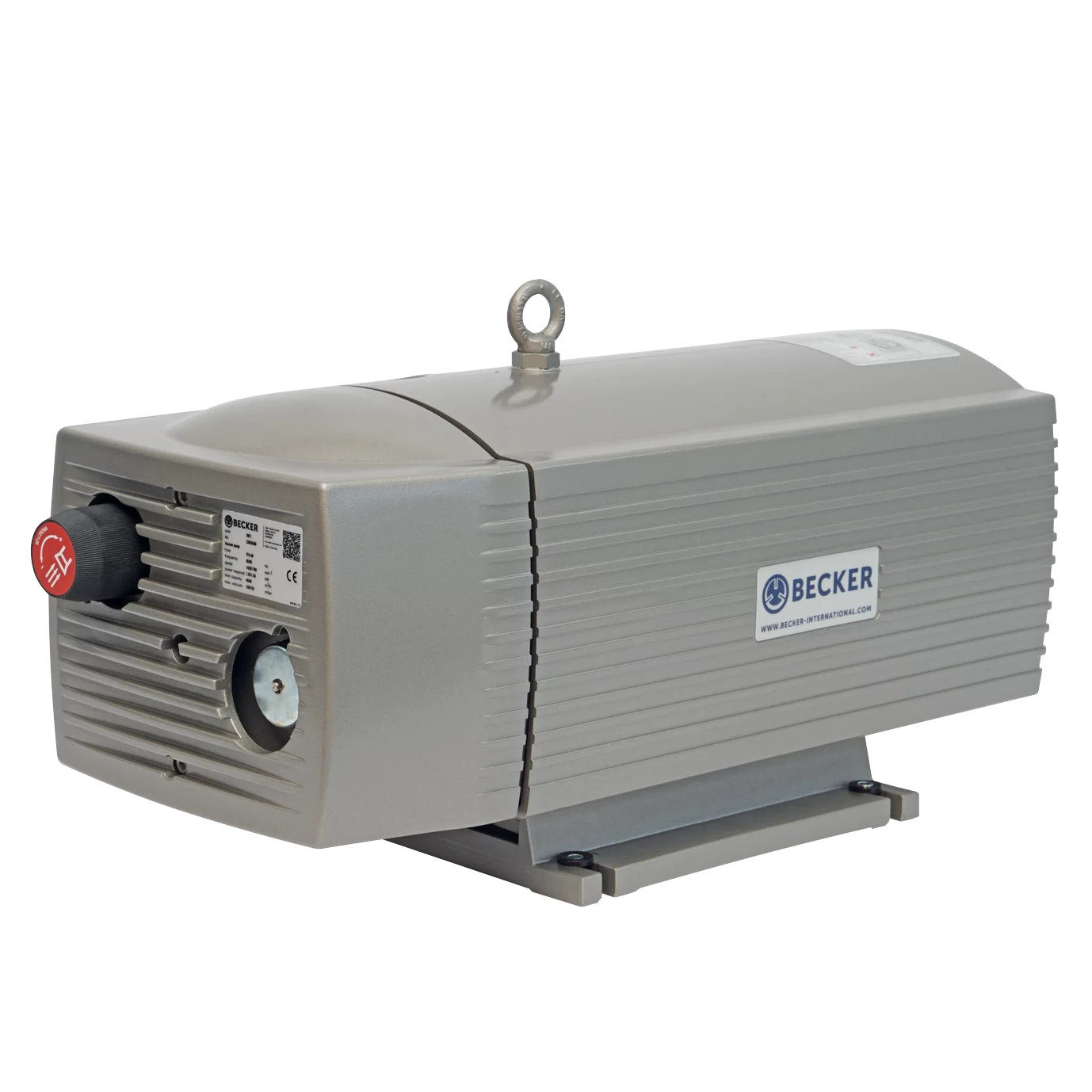

Rotary vane pump dry-running, 48 m³/h 3-phase for US and CA, Becker VT 4.40
Manufacturer: FIPA GmbH (Germany)
rotary vane pump dry running 40 m h becker vt 4 40
dry-running, air-cooled, including integrated suction filter, motor 3-phase 1.5 kW (60 Hz), 208V/230V/460V, suction capacity 48 m³/h (60 Hz), sound pressure level 72 dB(A) (60 Hz); suction connection G3/4"; UR(UL), CSA, CC, CE
Price: $3,556.78 (FAMAGA VPT.40A-3-US)
Specifications
- Description Becker
- VT 4.40
- Suction power at 50 Hz
- 40.0 m³/h
- Suction power at 60 Hz
- 48.0 m³/h
- Item no. Becker
- G027221
- Motor type
- 3-phasig especially for the North American market
- Rated power at 50 Hz
- 1.25 kW
- Rated power at 60 Hz
- 1.5 kW
- Power supply at 50 Hz
- 190-255 / 330-440
- Power supply at 60 Hz
- 190-290 / 330-500
- Sound pressure level at 50 Hz
- 67.0 dB(A)
- Sound pressure level at 60 Hz
- 72.0 dB(A)
- Current consumption at 50 Hz
- 5.2-6.2 / 3.0-3.6
- Current consumption at 60 Hz
- 6.9-5.7 / 4.0-3.3
- Note: Becker motor design according to data sheet Pos #
- 04
