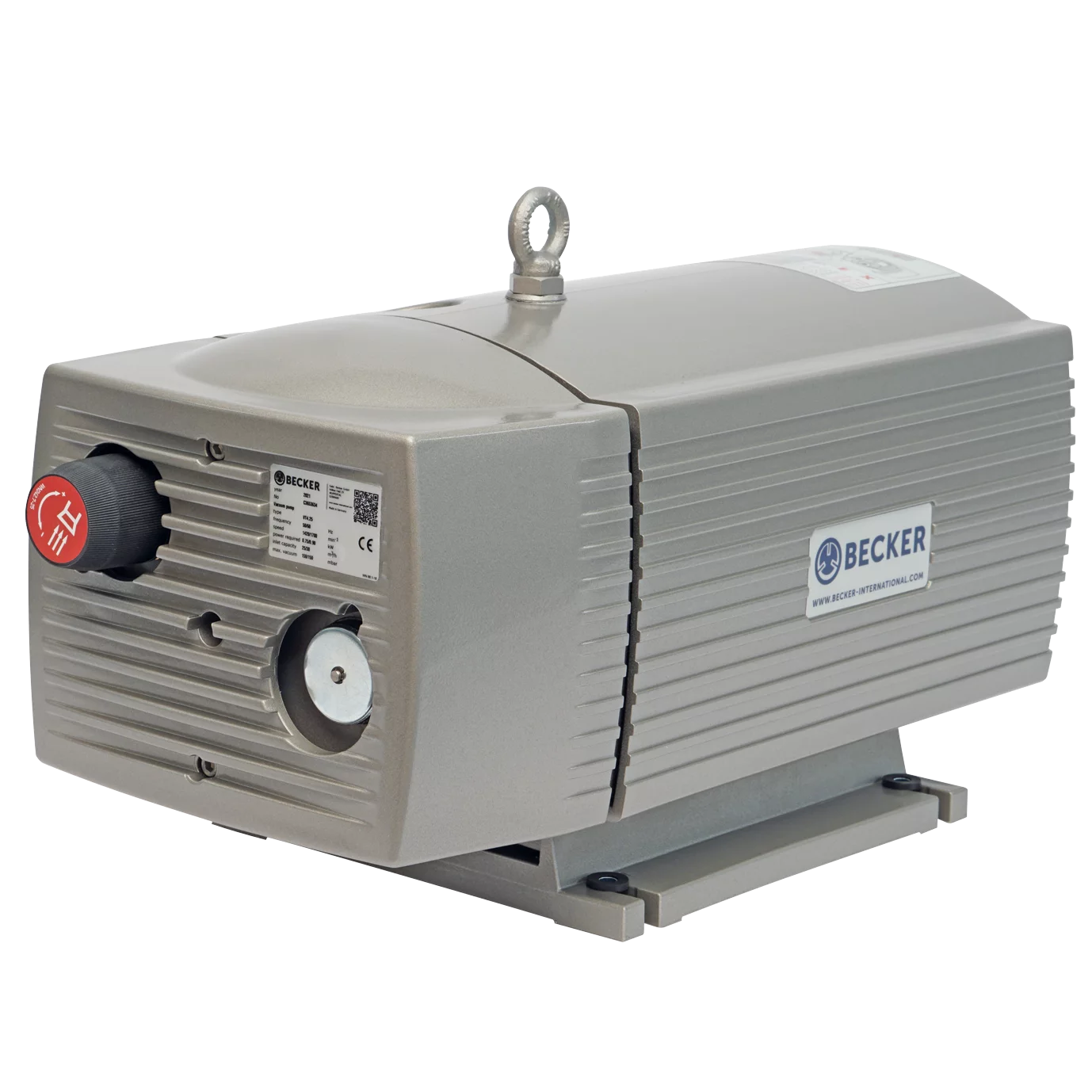

Rotary vane pump dry-running, 30 m³/h, 3-phase for US and CA, Becker VT 4.25
Manufacturer: FIPA GmbH (Germany)
rotary vane pump dry running 25 m h becker vt 4 25
dry-running, air-cooled, including integrated suction filter, motor 3-phase 0.9 kW (60 Hz), 208V/230V/460/400V, suction capacity 30 m³/h (60 Hz), sound pressure level 67 dB(A) (60 Hz); suction connection G3/4"; UR(UL), CSA, CC, CE
Price: $2,421.62 (FAMAGA VPT.25A-3-US)
Specifications
- Description Becker
- VT 4.25
- Suction power at 50 Hz
- 25.0 m³/h
- Suction power at 60 Hz
- 30.0 m³/h
- Item no. Becker
- G026677
- Motor type
- 3-phasig especially for the North American market
- Rated power at 60 Hz
- 0.9 kW
- Power supply at 50 Hz
- 400 V
- Power supply at 60 Hz
- 208 / 230 / 460 / 400 V
- Sound pressure level at 50 Hz
- 62.0 dB(A)
- Sound pressure level at 60 Hz
- 67.0 dB(A)
- Current consumption at 50 Hz
- 1.9 A
- Current consumption at 60 Hz
- 3.6 / 1.8 / 3.7 / 1.9 A
- Note: Becker motor design according to data sheet Pos #
- 01
