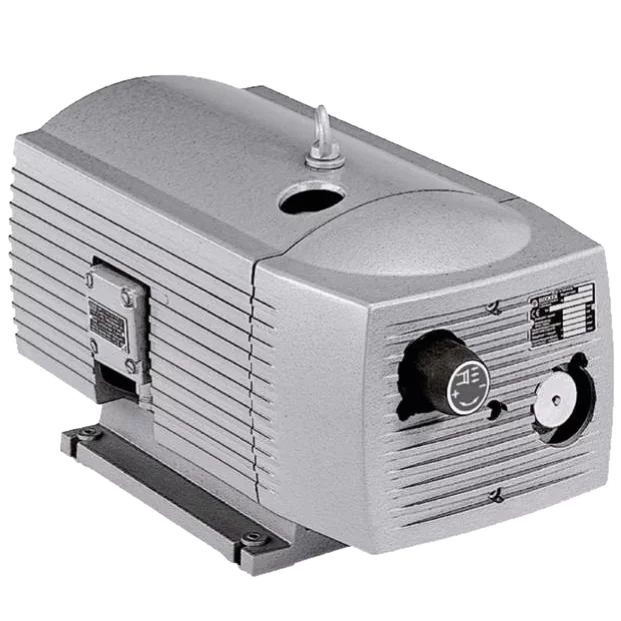

Rotary vane pump dry-running, 16 m³/h 3-phase, Becker VT 4.16
Manufacturer: FIPA GmbH (Germany)
rotary vane pump dry running 16 m h becker vt 4 16
dry-running, air-cooled, motor 3-phase 0.55/0.7 kW (50/60 Hz), 175-260V/300-450V (50 Hz) 202-300V/350-520V (60 Hz), suction power 16/19 m³/h (50/60 Hz), sound pressure level 61/64 dB(A) (50/60 Hz), suction connection G1/2".
Price: $1,911.57 (FAMAGA VPT.16A-3)
Specifications
- Description Becker
- VT 4.16
- Suction power at 50 Hz
- 16.0 m³/h
- Suction power at 60 Hz
- 19.0 m³/h
- Item no. Becker
- G008163
- Motor type
- 3-phase
- Rated power at 50 Hz
- 0.55 kW
- Rated power at 60 Hz
- 0.7 kW
- Power supply at 50 Hz
- 175-260 / 300-450 V
- Power supply at 60 Hz
- 202-300 / 350-520 V
- Sound pressure level at 50 Hz
- 61.0 dB(A)
- Sound pressure level at 60 Hz
- 64.0 dB(A)
- Current consumption at 50 Hz
- 3.8 / 2.2 A
- Current consumption at 60 Hz
- 3.9 / 2.25 A
Documentation
