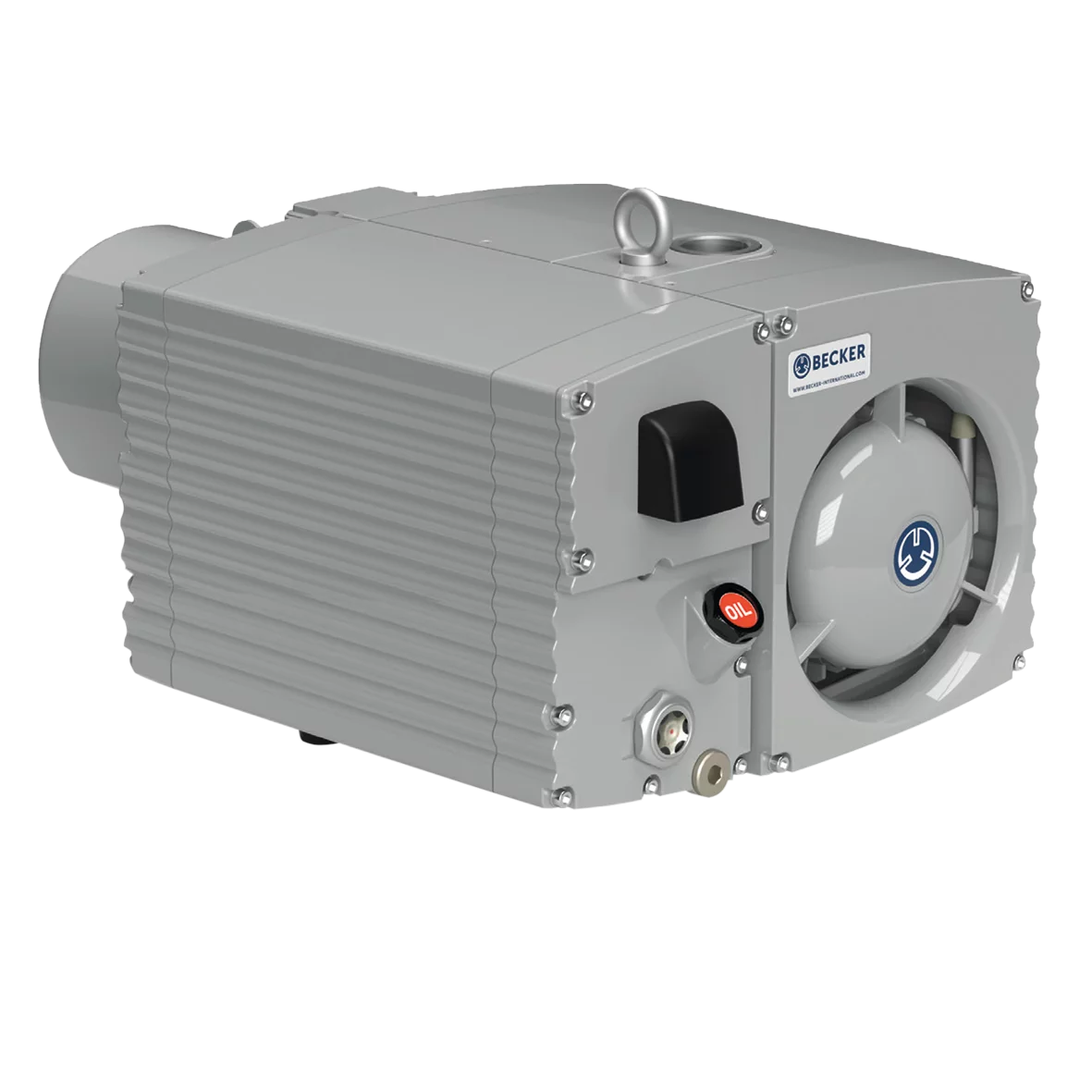

Rotary vane pump oil-lubricated, 70 m³/h 3-phase, Becker U5.71/0-00
Manufacturer: FIPA GmbH (Germany)
oil lubricated rotary vane pumps 70 m h becker u5 71
Oil lubricated, air cooled, motor 3-phase 1,5/1,8 kW (50/60 Hz), 230/400V (50 Hz) 230/400V 265/460V (60 Hz), suction capacity 70/84 m³/h (50/60 Hz), 0,1 mbar absolute, sound pressure level 64/67 dB(A) (50/60 Hz), suction connection G1 1/4", 2l oil tank, CE CSA UR(UL).
Attention: The pump is delivered without oil. Please order the oil suitable for your application.
Price: $4,814.09 (FAMAGA VPO.70A-3)
Specifications
- Description Becker
- U5.71/0-00
- Suction power at 50 Hz
- 70.0 m³/h
- Suction power at 60 Hz
- 84.0 m³/h
- Item no. Becker
- G051816
- Motor type
- 3-phase
- Rated power at 50 Hz
- 1.5 kW
- Rated power at 60 Hz
- 1.8 kW
- Power supply at 50 Hz
- 230 / 400
- Power supply at 60 Hz
- 265 / 460 / 230 / 400
- Sound pressure level at 50 Hz
- 64.0 dB(A)
- Sound pressure level at 60 Hz
- 67.0 dB(A)
- Current consumption at 50 Hz
- 6.4 / 3.7 A
- Current consumption at 60 Hz
- 6.4 / 3.7 / 6.9 / 4.0 A
- Note: Becker motor design according to data sheet Pos #
- 01
