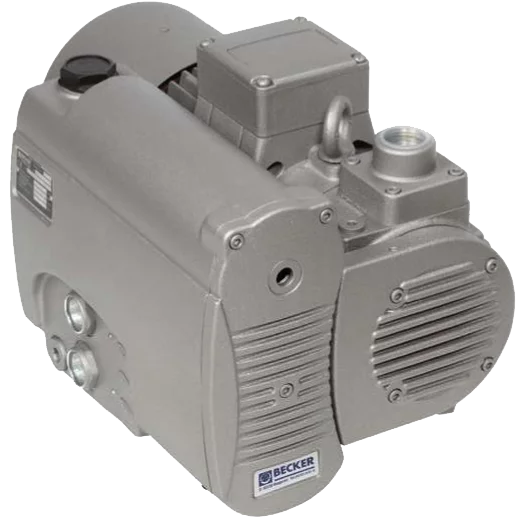

Rotary vane pump oil-lubricated, 40 m³/h Becker U4.40, 3-phase
Manufacturer: FIPA GmbH (Germany)
oil lubricated rotary vane pumps becker u4 40 40 m h
Oil lubricated, air cooled, motor 3-phase 1,5/1,8 kW (50/60 Hz), 230/400V (50 Hz) 265/460V (60 Hz), suction power 41/48 m³/h (50/60 Hz), 0,5 mbar absolute, sound pressure level 63/66 dB(A) (50/60 Hz), suction connection G1", 1l oil tank.
Attention: The pump is delivered without oil. Please order the oil suitable for your application.
Price: $4,027.86 (FAMAGA VPO.40A-3)
Specifications
- Description Becker
- U4.40
- Suction power at 50 Hz
- 40.0 m³/h
- Suction power at 60 Hz
- 48.0 m³/h
- Item no. Becker
- G024061
- Motor type
- 3-phase
- Rated power at 50 Hz
- 1.5 kW
- Rated power at 60 Hz
- 1.8 kW
- Power supply at 50 Hz
- 230 / 400 V
- Power supply at 60 Hz
- 265 / 460 V
- Sound pressure level at 50 Hz
- 63.0 dB(A)
- Sound pressure level at 60 Hz
- 66.0 dB(A)
- Current consumption at 50 Hz
- 5.33 / 3.08 A
- Current consumption at 60 Hz
- 5.58 / 3.22 A
- Note: Becker motor design according to data sheet Pos #
- 01
