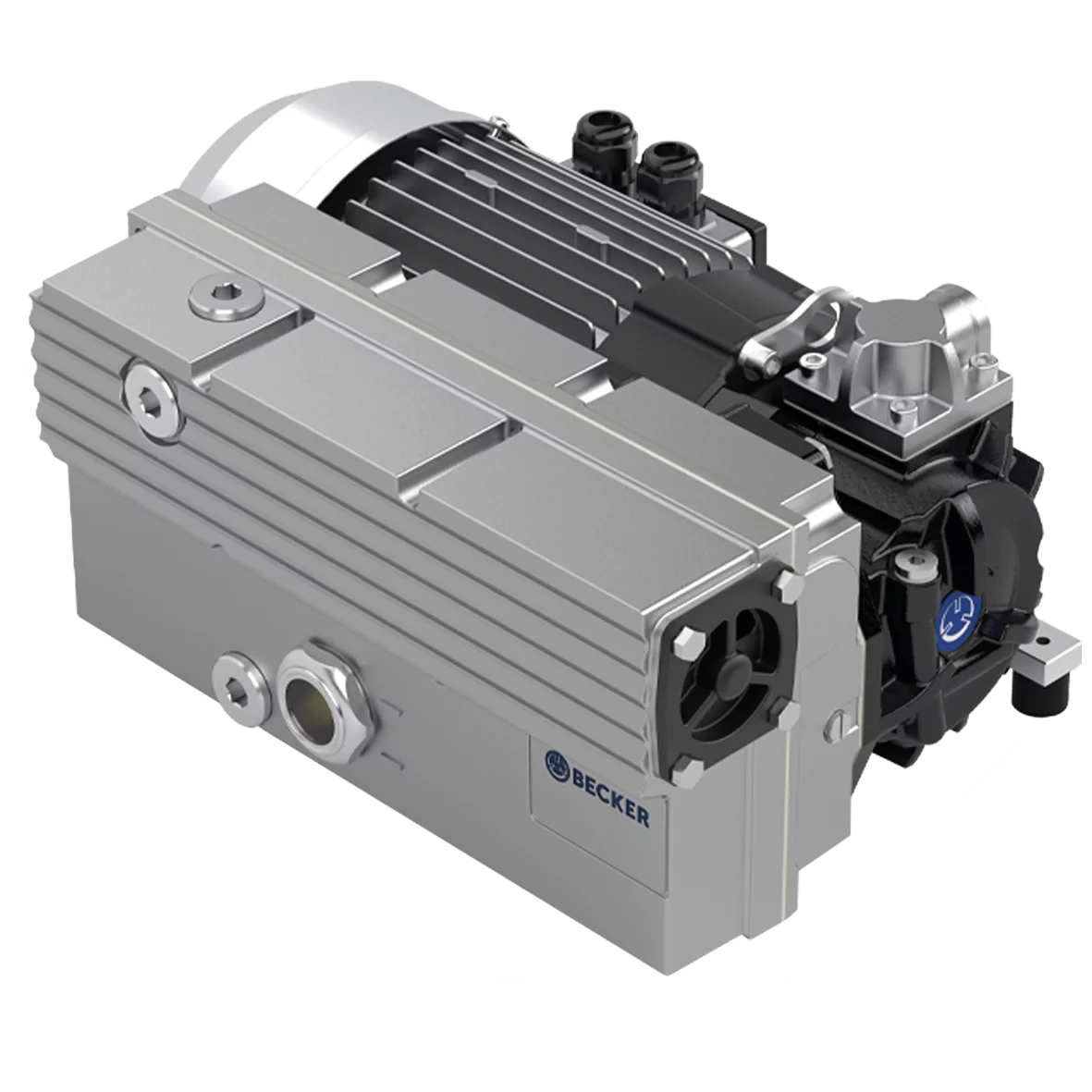

Rotary vane pump oil-lubricated, 25 m³/h, 3-phase, Becker O5.25/0-50
Manufacturer: FIPA GmbH (Germany)
oil lubricated rotary vane pumps 25 m h becker o5 25
Oil lubricated, air cooled, motor 3-phase 0,75/0,9 kW (50/60 Hz), 230/400V (50 Hz) 230/400V 265/460V (60 Hz), suction capacity 26/30 m³/h (50/60 Hz), 2 mbar absolute, sound pressure level 63/66 dB(A) (50/60 Hz), suction connection G3/4", 0,5l oil tank.
Attention: The pump is delivered without oil. Please order the oil suitable for your application.
Price: $2,667.18 (FAMAGA VPO.25A-3)
Specifications
- Description Becker
- O5.25/0-50
- Suction power at 50 Hz
- 25.0 m³/h
- Suction power at 60 Hz
- 30.0 m³/h
- Item no. Becker
- G052357
- Motor type
- 3-phase
- Rated power at 50 Hz
- 0.75 kW
- Rated power at 60 Hz
- 0.9 kW
- Power supply at 50 Hz
- 230 / 400 V
- Power supply at 60 Hz
- 265 / 460 / 230 / 400 V
- Sound pressure level at 50 Hz
- 63.0 dB(A)
- Sound pressure level at 60 Hz
- 66.0 dB(A)
- Current consumption at 50 Hz
- 3.1 / 1.8 A
- Current consumption at 60 Hz
- 3.1 / 1.8 / 3.3 / 1.9 A
- Note: Becker motor design according to data sheet Pos #
- 04
