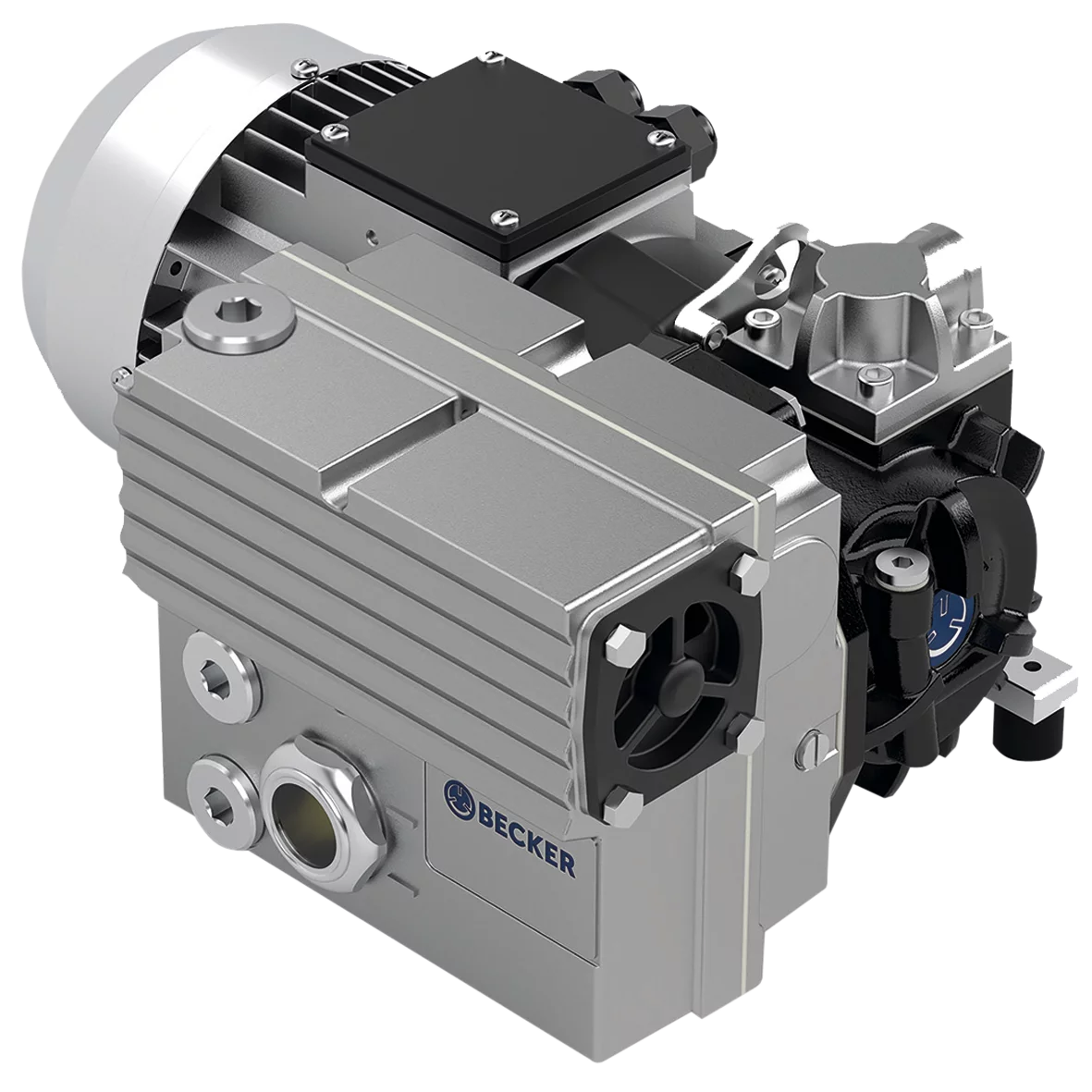

Rotary vane pump oil-lubricated, 16 m³/h, 1-phase, Becker O5.16/0-00
Manufacturer: FIPA GmbH (Germany)
oil lubricated rotary vane pumps 16 m h becker o5 16
Oil lubricated, air cooled, motor 1-phase 0,55/0,66 kW (50/60 Hz), 220-240V (50 and 60 Hz), suction power 16/19 m³/h (50/60 Hz), 2 mbar absolute, sound pressure level 60,5/67 dB(A) (50/60 Hz), suction connection G1/2", 0,3l oil tank.
Attention: The pump is delivered without oil. Please order the oil suitable for your application.
Price: $2,253.55 (FAMAGA VPO.16A-1)
Specifications
- Description Becker
- O5.16/0-00
- Suction power at 50 Hz
- 16.0 m³/h
- Suction power at 60 Hz
- 19.0 m³/h
- Item no. Becker
- G050584
- Motor type
- 1-phasig
- Rated power at 50 Hz
- 0.55 kW
- Rated power at 60 Hz
- 0.66 kW
- Power supply at 50 Hz
- 220 - 240 V
- Power supply at 60 Hz
- 220 - 240 V
- Sound pressure level at 50 Hz
- 60.5 dB(A)
- Sound pressure level at 60 Hz
- 67.0 dB(A)
- Current consumption at 50 Hz
- 3.7 A
- Current consumption at 60 Hz
- 4.7 A
- Note: Becker motor design according to data sheet Pos #
- 02
