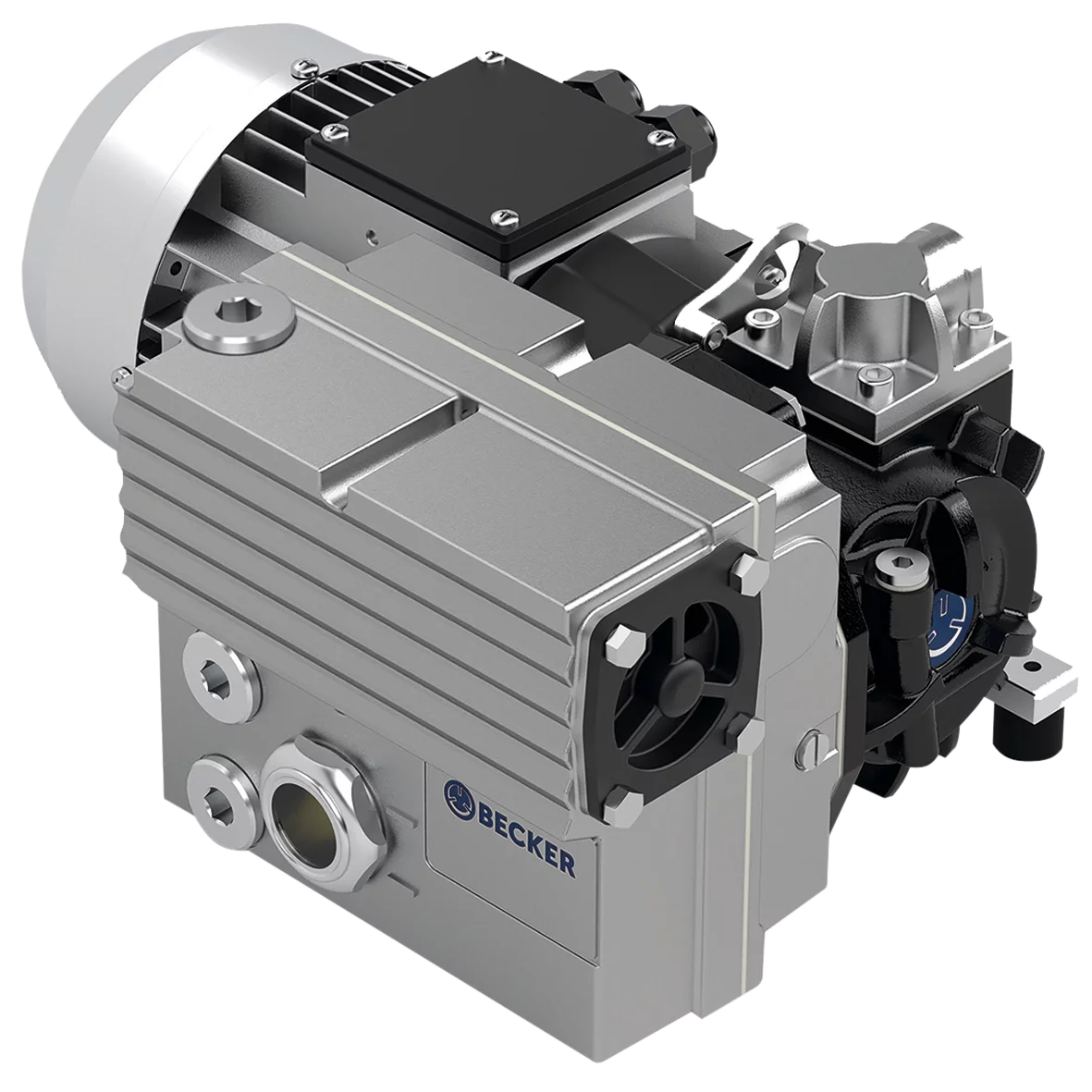

Rotary vane pump oil-lubricated, 10 m³/h, 1-phase, Becker O5.10/0-00,
Manufacturer: FIPA GmbH (Germany)
oil lubricated rotary vane pumps 10 m h becker o5 10
Oil-lubricated, air-cooled, motor 1-phase 0.37/0.45 kW (50/60 Hz), 220-240V (50 and 60 Hz), suction capacity 10.5/12.5 m³/h (50/60 Hz), 2 mbar absolute, sound pressure level 58.5/64 dB(A) (50/60 Hz), suction connection G1/2", 0.3l oil tank
Attention: The pump is delivered without oil. Please order the oil suitable for your application.
Price: $2,176.39 (FAMAGA VPO.10A-1)
Specifications
- Description Becker
- O5.10/0-00
- Suction power at 50 Hz
- 10.5 m³/h
- Suction power at 60 Hz
- 12.5 m³/h
- Item no. Becker
- G50758
- Motor type
- 1-phase
- Rated power at 50 Hz
- 0.37 kW
- Rated power at 60 Hz
- 0.45 kW
- Power supply at 50 Hz
- 220 - 240 V
- Power supply at 60 Hz
- 220 - 240 V
- Sound pressure level at 50 Hz
- 58.5 dB(A)
- Sound pressure level at 60 Hz
- 64.0 dB(A)
- Current consumption at 50 Hz
- 2.5 A
- Current consumption at 60 Hz
- 3.2 A
- Note: Becker motor design according to data sheet Pos #
- 02
