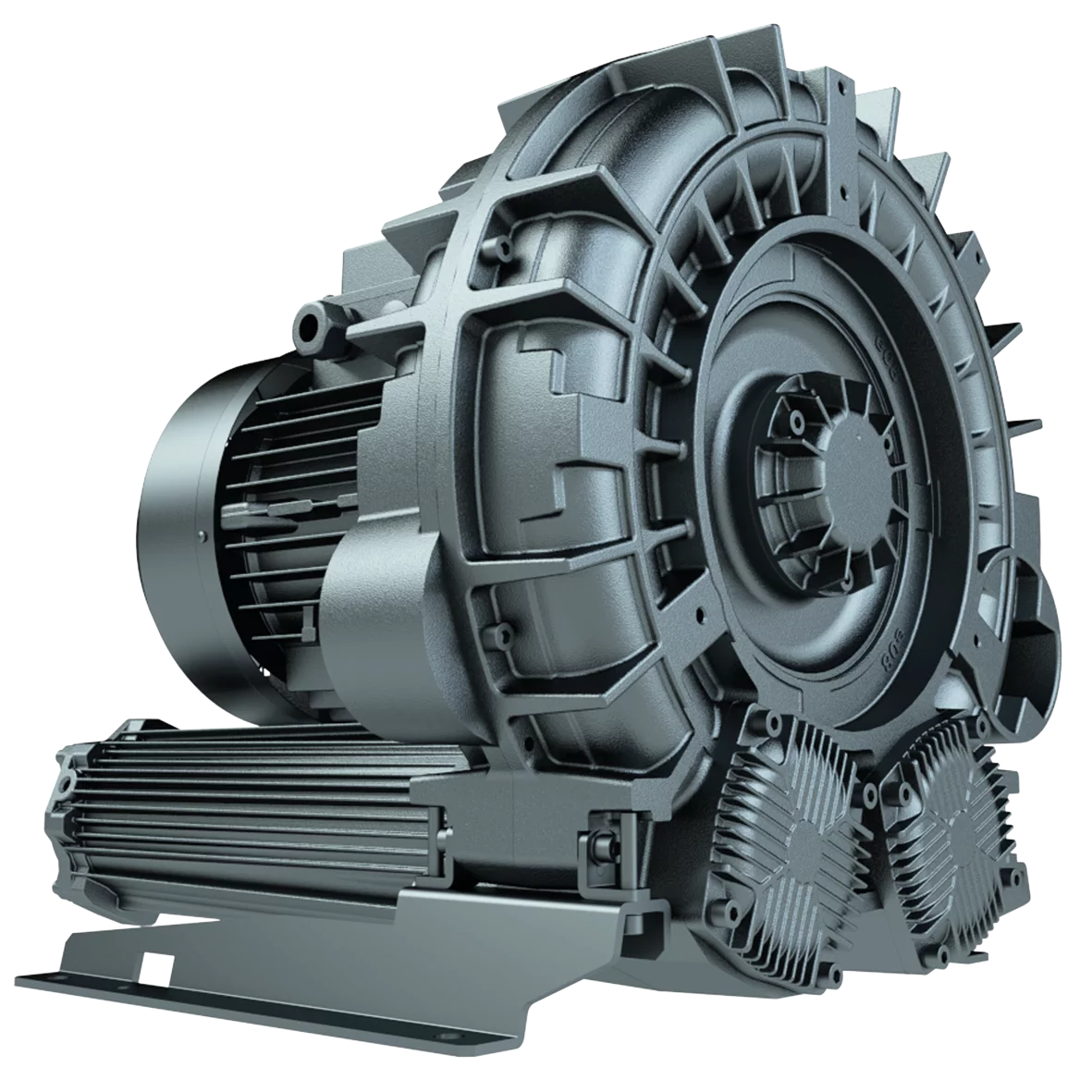

Side channel blower 236/285 m³/h, -450 mbar FPZ e08 MD MOR 5,5 kW, cURus
Manufacturer: FIPA GmbH (Germany)
side channel blower fpz e08 md 255 301 m h
Motor 5,5/6,3 kW 3-phase, 200/400 VAC (50Hz), 208/230/460 VAC (60Hz)
For continuous operation at maximum vacuum level, or with the suction port closed, an optional vacuum relief valve is required.
USA/Canada version.
Price: $7,281.31 (FAMAGA SKV.D.255-5.5-C-3-UR)
Specifications
- Model
- FPZ e08-MD
- Suction power at 50 Hz
- 255 m³/h
- Suction power at 60 Hz
- 301 m³/h
- Motor type
- 3-phasig speziell für den nordamerikanischen Markt
- Rated power at 50 Hz
- 5.5 kW
- Rated power at 60 Hz
- 6.3 kW
- Power supply at 50 Hz
- 200 / 400 VAC
- Power supply at 60 Hz
- 208 / 230 / 460 VAC
- Sound pressure level at 50 Hz
- 73 dB(A)
- Sound pressure level at 60 Hz
- 78 dB(A)
- Current consumption at 50 Hz
- 11.1 / 6.41
- Current consumption at 60 Hz
- 11.0 / 6.35
- Max. Vacuum level mbar
- -450 mbar
Documentation
