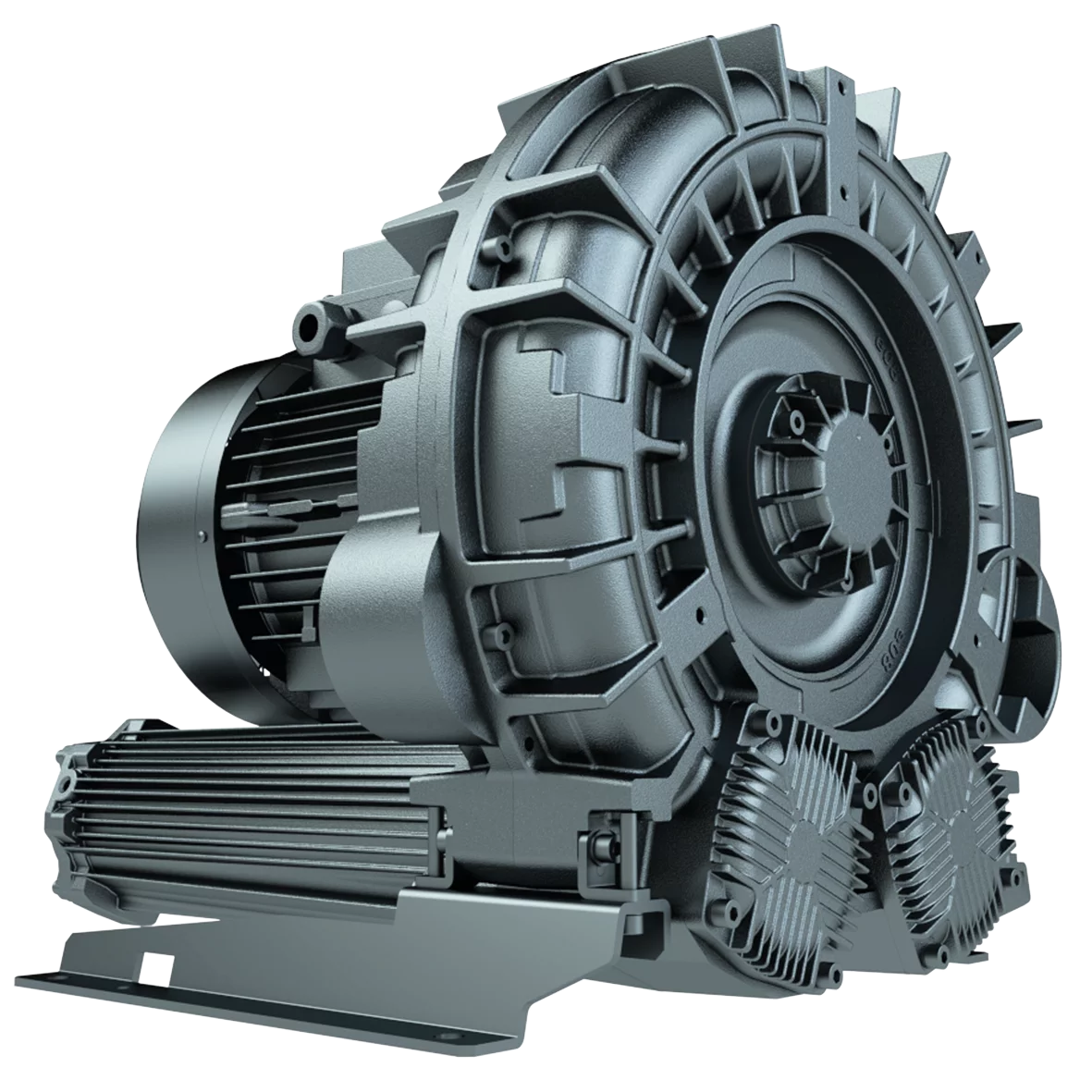

Side channel blower 181/218 m³/h, -450 mbar FPZ e07 MD MOR 4,0 kW, cURus
Manufacturer: FIPA GmbH (Germany)
side channel blower fpz e07 md 209 260 m h
Motor 4,0/4,6 kW 3-phase, 200/400 VAC (50Hz), 208/230/460 VAC (60Hz); cURus
For continuous operation at maximum vacuum level, or with the suction port closed, an optional vacuum relief valve is required.
USA/Canada version
Price: $4,934.50 (FAMAGA SKV.D.209-4.0-C-3-UR)
Specifications
- Model
- FPZ e07-MD
- Suction power at 50 Hz
- 209 m³/h
- Suction power at 60 Hz
- 260 m³/h
- Motor type
- 3-phasig especially for the North American market
- Rated power at 50 Hz
- 4 kW
- Rated power at 60 Hz
- 4.8 kW
- Power supply at 50 Hz
- 200 / 400 VAC
- Power supply at 60 Hz
- 208 / 230 / 460 VAC
- Sound pressure level at 50 Hz
- 72 dB(A)
- Sound pressure level at 60 Hz
- 77 dB(A)
- Current consumption at 50 Hz
- 13.7 / 7.93
- Current consumption at 60 Hz
- 18.8 / 7.94
- Max. Vacuum level mbar
- -450 mbar
Documentation
