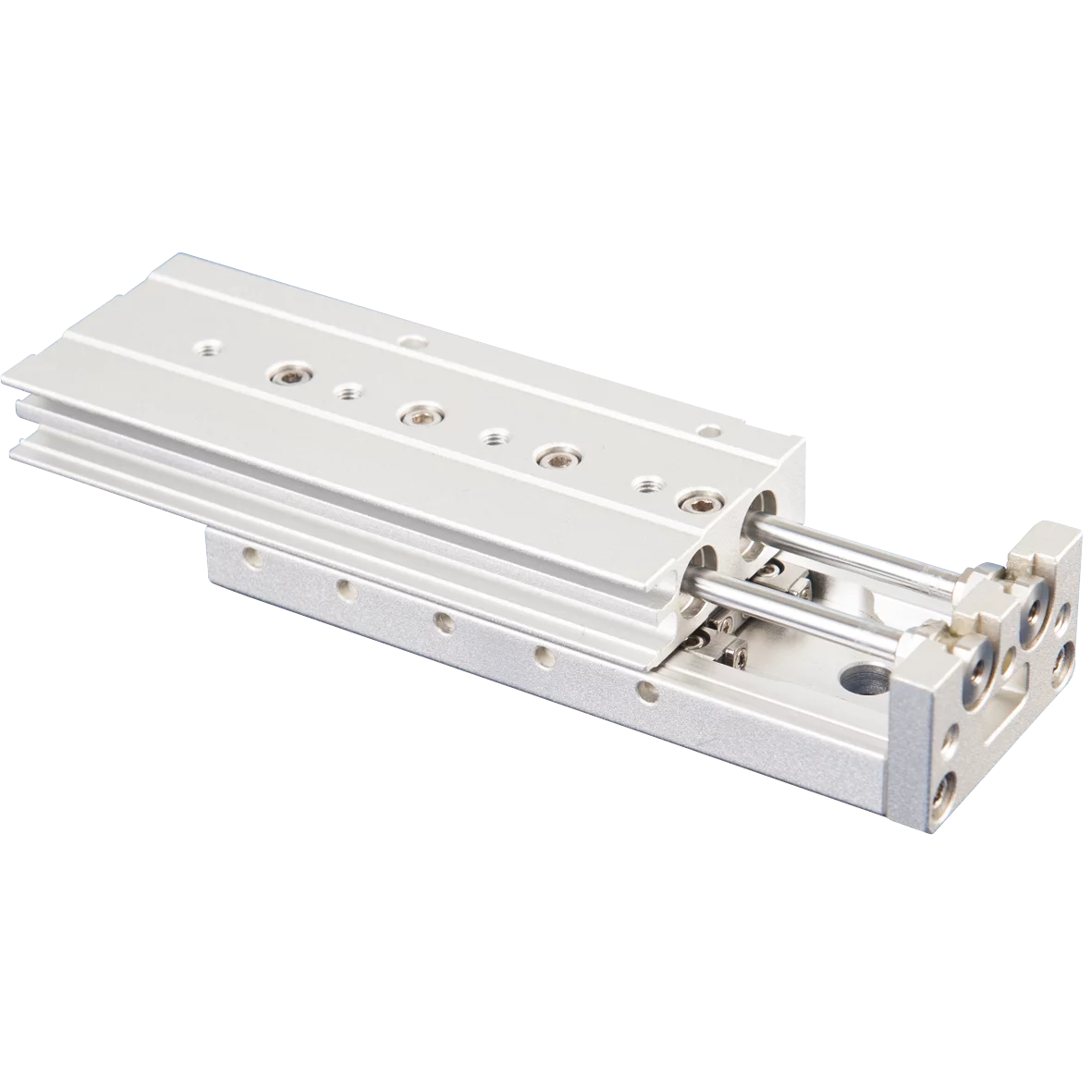

Guide block, piston diameter 16 mm, double acting, stroke 50 mm Vacuum Gripper
Manufacturer: FIPA GmbH (Germany)
guide blocks piston double acting
<ul>
<li>Unit to precisely guide gripper components such as sprue grippers or nippers to the workpiece</li>
<li>Double-acting, separate compressed air connections for extraction and rectraction</li>
<li>Sensors for optional detection of piston position (extracted/retracted)</li>
<li>Stroke adjusters available on request</li>
<li>Linear guide blocks can also be used to move gripped workpieces more closely together, to prepare the items for example for pick & place by vacuum grippers</li>
<li>PNP and NPN sensors: <br />- C-slot (90° angle): <a href="https://fipa.com/en-DE/variant/gr04-202p" target="_blank" rel="noopener">GR04.202P</a>, <a href="https://fipa.com/en-DE/variant/gr04-202n" target="_blank" rel="noopener">GR04.202N </a><br />- C-slot (straight, short design): <a href="https://fipa.com/en-DE/variant/gr04-280p" target="_blank" rel="noopener">GR04.280P</a>, <a href="https://fipa.com/en-DE/variant/gr04-280n" target="_blank" rel="noopener">GR04.280N</a></li>
<li>Medium: filtered and oiled/non-oiled air</li>
</ul>
Price: $427.84 (FAMAGA GR07.216-50)
Specifications
- Weight (g)
- 762.0 g
- Stroke
- 50.0 mm
- B
- 40.0 mm
- Operating pressure (bar)
- 1.5 - 7 bar
- Operating pressure (psi)
- 21.8 - 101 psi
- D
- 62.0 mm
- Operating temperature (°C)
- -5 - 60 °C
- Operating temperature (°F)
- 23 - 140 °F
- L1
- 35.0 mm
- E1
- 15.0 mm
- L2
- 48.0 mm
- Compressed air connection
- 2xM5
- Piston diameter
- 16.0 mm
- F1
- 60.0 mm
- C1
- 100.0 mm
- C2
- 10.0 mm
- F2
- 30.0 mm
- F3
- 30.0 mm
- Ø R
- 10.5 mm
- L3
- 26
- B1
- 36.5 mm
- B2
- 37.0 mm
- C3
- 101.0 mm
- E3
- 21.0 mm
- C
- 112 - 162 mm
- E2
- 20 - 21 mm
