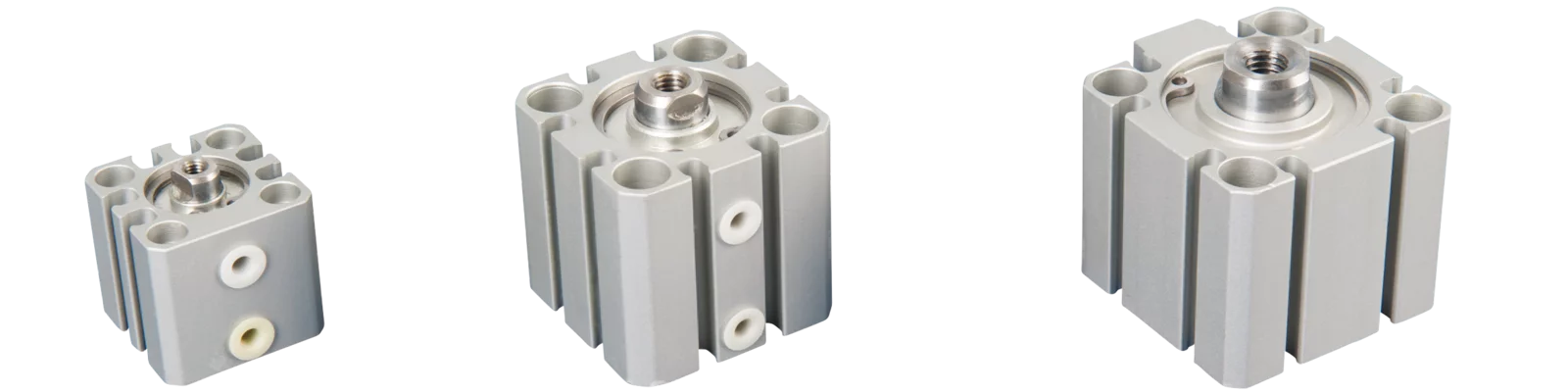

Short stroke cylinder, piston diameter 32 mm, double acting, stroke 25 mm Vacuum Gripper
Manufacturer: FIPA GmbH (Germany)
short stroke cylinders double acting
<ul>
<li>Elements to guide gripper components such as vacuum cups to the workpiece</li>
<li>Double-acting, separate compressed air connections for extraction and rectraction</li>
<li>Medium: filtered and oiled/unoiled air</li>
<li>Operating pressure: 0.5 - 9.9 bar (7.3 - 143.6 psi)</li>
</ul>
<ul>
<li>Operating temperature: -5 - 60 °C (23 - 140 °F)</li>
<li>Sensors for optional detection of piston position (extracted/retracted)</li>
<li>Through mounting option with mounting screw kits (please order separately according to cylinder size, consists of 4 screws/washers)</li>
<li>Further stroke versions available on request</li>
<li>PNP and NPN sensors: C-slot (90° angle): <a href="https://fipa.com/en-DE/variant/gr04-202p" target="_blank" rel="noopener">GR04.202P</a>, <a href="https://fipa.com/en-DE/variant/gr04-202n" target="_blank" rel="noopener">GR04.202N </a>/ C-slot (straight, short design): <a href="https://fipa.com/en-DE/variant/gr04-280p" target="_blank" rel="noopener">GR04.280P</a>, <a href="https://fipa.com/en-DE/variant/gr04-280n" target="_blank" rel="noopener">GR04.280N</a></li>
<li>Can be used as gripper tool when combined with pressure plates GR07.196 - GR07.199</li>
</ul>
Price: $114.28 (FAMAGA GR07.032-25)
Specifications
- Ø D
- 9.0 mm
- H
- M6x10
- SW
- 14.0
- Weight (g)
- 280.0 g
- Stroke
- 25.0 mm
- Operating pressure (bar)
- 0.5 - 9.9 bar
- Operating pressure (psi)
- 7.3 - 143.6 psi
- C
- 65.0 mm
- G
- M8x13
- E
- 7.5 mm
- Operating temperature (°C)
- -5 - 60 °C
- Operating temperature (°F)
- 23 - 140 °F
- □ B
- 45.0 mm
- □ F
- 34.0 mm
- Compressed air connection
- G1/8
- Piston diameter
- 32.0 mm
- Z
- 8.0 mm
- T
- 7.0 mm
- F1
- 40.0 mm
- N
- G1/8
- C1
- 58.0 mm
- Ø R
- 16.0 mm
- Y
- M5
