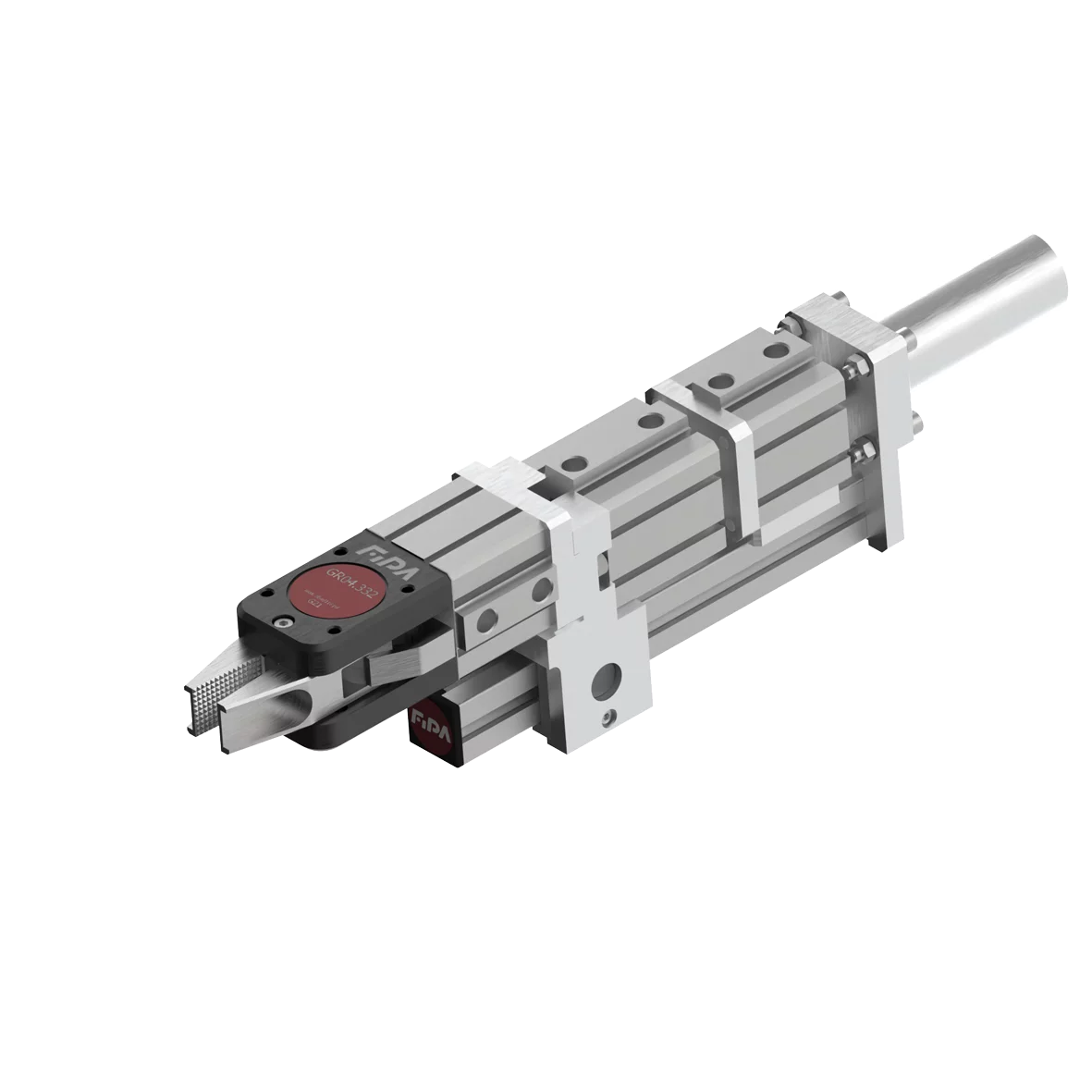

Series 332 power gripper, double stroke, 20/20 mm standard, without sensor
Manufacturer: FIPA GmbH (Germany)
series 332 power gripper with stroke double acting
<ul><li>Strong, double-action power gripper with single or double stroke</li></ul><ul><li>Ideally suited for matrix removal, especially of large components</li></ul><ul><li>Optionally available with direct sensor scanning (Sensor with 3-pin male and M8 connector included in scope of delivery)</li></ul><ul><li>Clamping force measured at the jaw tip</li></ul><ul><li>The end positions of the lifting cylinders can be sensed with optional sensors</li></ul><ul><li>Optional stroke limiters are available for easy adjustment of the cylinder stroke</li><li>Standard clamping diameter Ø 30 mm, available on request with clamping diameter Ø 20 mm</li></ul><ul><li>Other customer-specific designs or adaptations are possible and easy to implement – please contact our sales department</li></ul>
Price: $908.06 (FAMAGA GR04.332-20-20)
Specifications
- Ø D
- 30.0 mm
- Weight (g)
- 1550.0 g
- B
- 94.5 mm
- Operating pressure (bar)
- 0.5 - 6 bar
- A
- 396.0 mm
- Operating pressure (psi)
- 7.3 - 87 psi
- C
- 56.0 mm
- F
- 10.0 mm
- E
- 74.0 mm
- Sensor
- without
- Jaw
- Standard
- Closing force at 6 bar (87 psi)
- 310.0 N
- Stroke 2
- 20
- Stroke 1
- 20.0 mm
- Lifting force at 6 bar (87 psi)
- 480.0 N
- A*
- 436.0 mm
