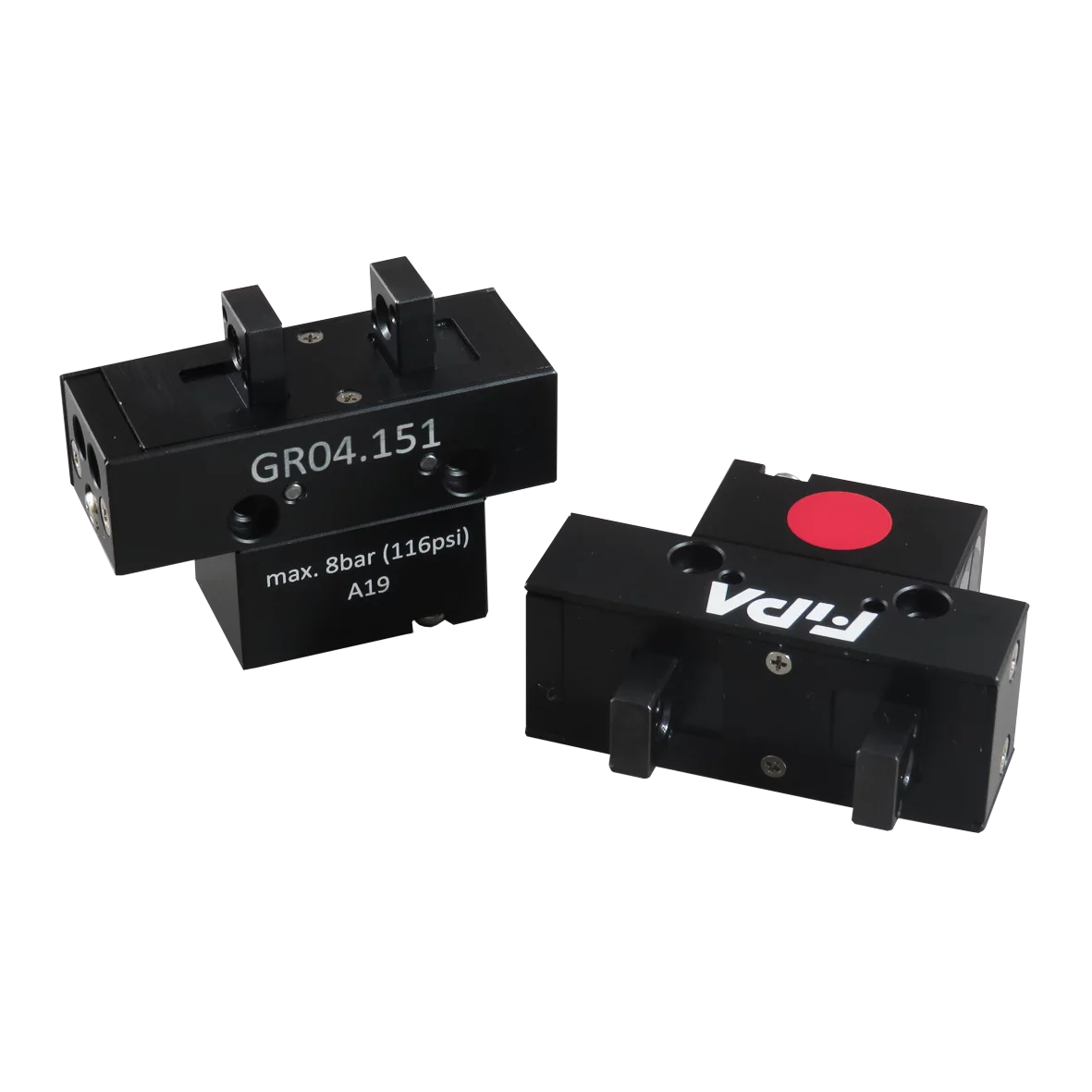

2-finger parallel gripper, piston-Ø 16 mm, total stroke 4 mm, double-acting
Manufacturer: FIPA GmbH (Germany)
2 finger parallel grippers compact
<ul><li>Double acting </li></ul><ul><li>Simple installation and adjustment of the sensors (not included in scope of delivery)</li></ul><ul><li>Large gripper stroke relative to gripper size </li></ul><ul><li>Robust design, long life and high reliability, maintenance-free</li></ul><ul><li>Compressed air connection - M5</li></ul><ul><li>Housing and jaws made of an anodized, high-strength aluminum alloy</li></ul><ul><li>Long lifetime due to special wear-resistant seals</li></ul>
Price: $322.87 (FAMAGA GR04.151)
Specifications
- Weight (g)
- 49.0 g
- Max. operating temperature (°C)
- -10.0 °C
- Operating pressure (bar)
- 3 - 7 bar
- Principle of operation
- double-acting
- Closing force at 6 bar (87 psi)
- 102.0 N
- Max. operating temperature (°C)
- -10 - 60 °C
- Stroke per gripper jaw
- 4.0 mm
- Cycle time
- 1.7 Hz
- Opening force at 6 bar (87 psi)
- 113.0 N
- Air consumption per cycle
- 1.76 cm³
