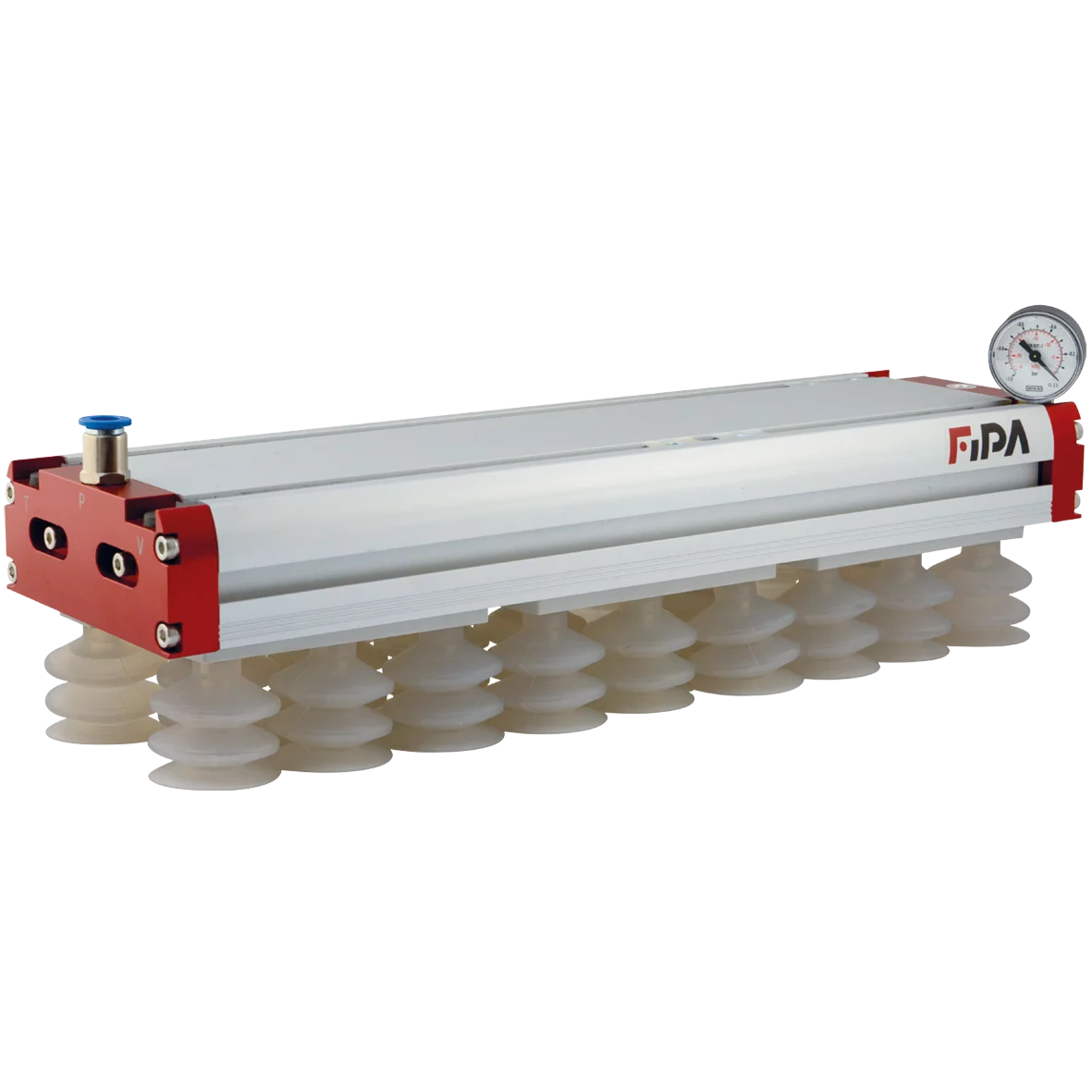

Area gripper FSG 434 mm, with internal ejectors, check valves, cups Ø40 mm SI
Manufacturer: FIPA GmbH (Germany)
area gripper 130 with plug in vacuum cups diameter 40 mm
with standard width 130 mm, with 2 integrated ejector cartridges, with 26 plug-in cups diameter 40 mm, 2,5 bellows, silicone 55° shore A, transparent, with 4 slot nuts 1x M8
Price: $2,407.57 (FAMAGA FSG.VG130.434.3C02C2)
Specifications
- Suction power at 6 bar (87 psi)
- 700.0 Nl/min
- Air consumption at 6 bar (87 psi)
- 200.0 Nl/min
- Gewicht
- 3.8 kg
- Working pressure (bar)
- 4 - 6 bar
- Working pressure (psi)
- 58 - 87 psi
- Number of vacuum cups
- 26
- Vacuum level (inHg)
- -16.2 inHg
- Vacuum level (mbar)
- -550 mbar
- Suction force at nominal power
- 258.0 N
Documentation
