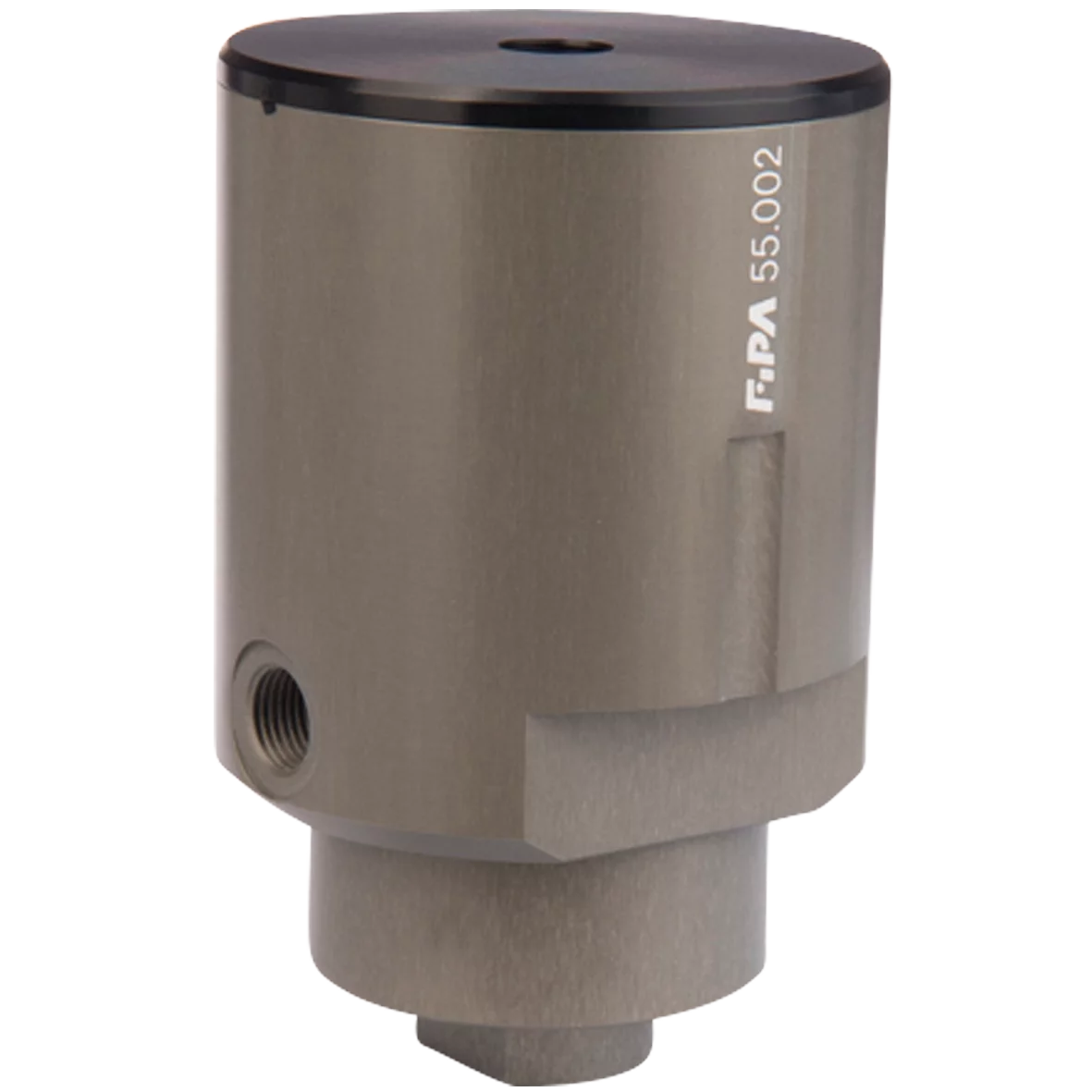

Vacuum-lifting cylinder, vacuum operated, stroke: 30 mm, anti-rotation (hart-coat)
Manufacturer: FIPA GmbH (Germany)
lifting cylinders vacuum operated
<ul>
<li>Stacking and unstacking of flat, delicate workpieces, e.g., signs, cards, paper, or veneers</li>
<li>Suitable for short cycle times and efficient production processes</li>
<li>Robust aluminum housing, Hartcoat®-coated for high durability</li>
<li>Twist-proof piston rod for reliable operation</li>
<li>Especially low-noise design for quiet working environments</li>
<li>Version <a href="https://fipa.com/en-DE/variant/55-002" target="_blank" rel="noopener">55.002</a>: also suitable for stacking and lifting sheets or heavy parts</li>
<li>Not suitable for porous or air-permeable workpieces</li>
<li>Custom sizes available on request</li>
</ul>
<p><br />Function Description:</p>
<ul>
<li>Connection to a vacuum generator: The lifting cylinder is supplied with vacuum</li>
<li>Rapid lift and pick-up: The piston extends, and as soon as the suction cup contacts the workpiece and vacuum is applied, the workpiece is picked up</li>
<li>Immediate retraction: The piston retracts immediately, so only the top workpiece is lifted without affecting the underlying workpieces</li>
<li>Secure holding: The workpiece remains held until the vacuum is switched off</li>
</ul>
Price: $334.55 (FAMAGA 55.002)
Specifications
- G1
- G1/4
- G2
- G1/8
- Weight (g)
- 331.0 g
- Stroke
- 30.0 mm
- A
- 92.0 mm
- Ø B
- 59.0 mm
- C
- 8.0 mm
- G3
- M10
- D
- 18.0 mm
- Operating temperature (°C)
- 5 - 80 °C
- Operating temperature (°F)
- 41 - 176 °F
- Volume flow at 80 % vacuum
- 35.0 Nl/min
- Lifting force at 80 % vacuum
- 50.0 N
- Cycle time (extend-suction-lift)
- 1.4 s
