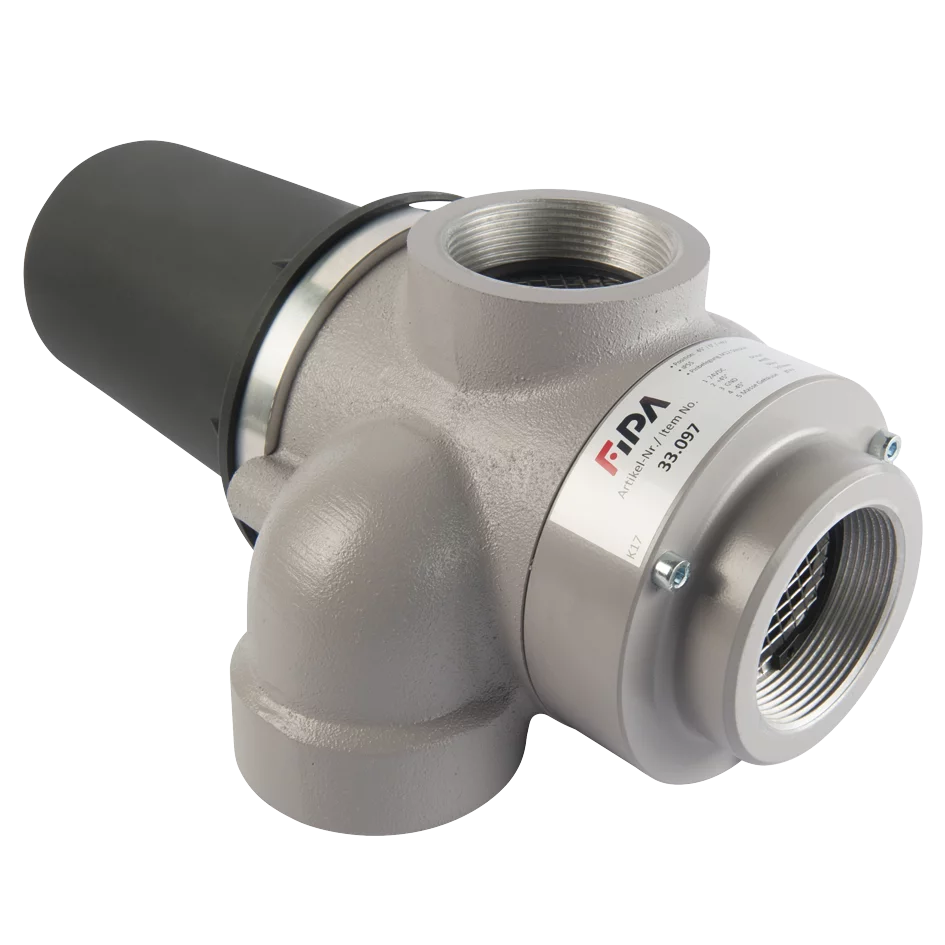

Change over valve vacuum / pressure nominal width: G2"=50,4 mm, material: Aluminium
Manufacturer: FIPA GmbH (Germany)
electro pneumatic reversing valves for side channel blowers
<ul>
<li>Enables side channel blower operation for vacuum generation or blow-off applications</li>
<li>Directs the airflow to the suction cup or consumer without reversing the blower's direction of rotation</li>
<li>Three switching positions: Vacuum, Blow-off, and Neutral</li>
<li>Electrically actuated rotary cylinder switching mechanism</li>
</ul>
Price: $1,179.98 (FAMAGA 33.097)
Specifications
- Ambient air temperature (C°)
- 0 - 40 °C
- Medium
- Unlubricated. filtered air
- Ambient air temperature (F)
- 0 - 580.2 °F
- Gewicht
- 3.3 kg
- Duty ratio
- 100.0 %
- Power consumption
- 10.0 W
- Pressure
- 800 mbar
- Storage temperature
- -20 - 50 °C
- Storage temperature
- -290.1 - 725 °F
- Pressure
- 11.603 psi
- Power supply
- 24 +/- 10%
- Storage temperature
- -20.0 °C
- Pressure
- 800.0 mbar
- Direction of rotation
- -45 / 0 / +45
- Suction power
- 300 m³/h
- Mean control time
- 0.5 s
- Minimum time interval between successive cycles
- 0.5 s
