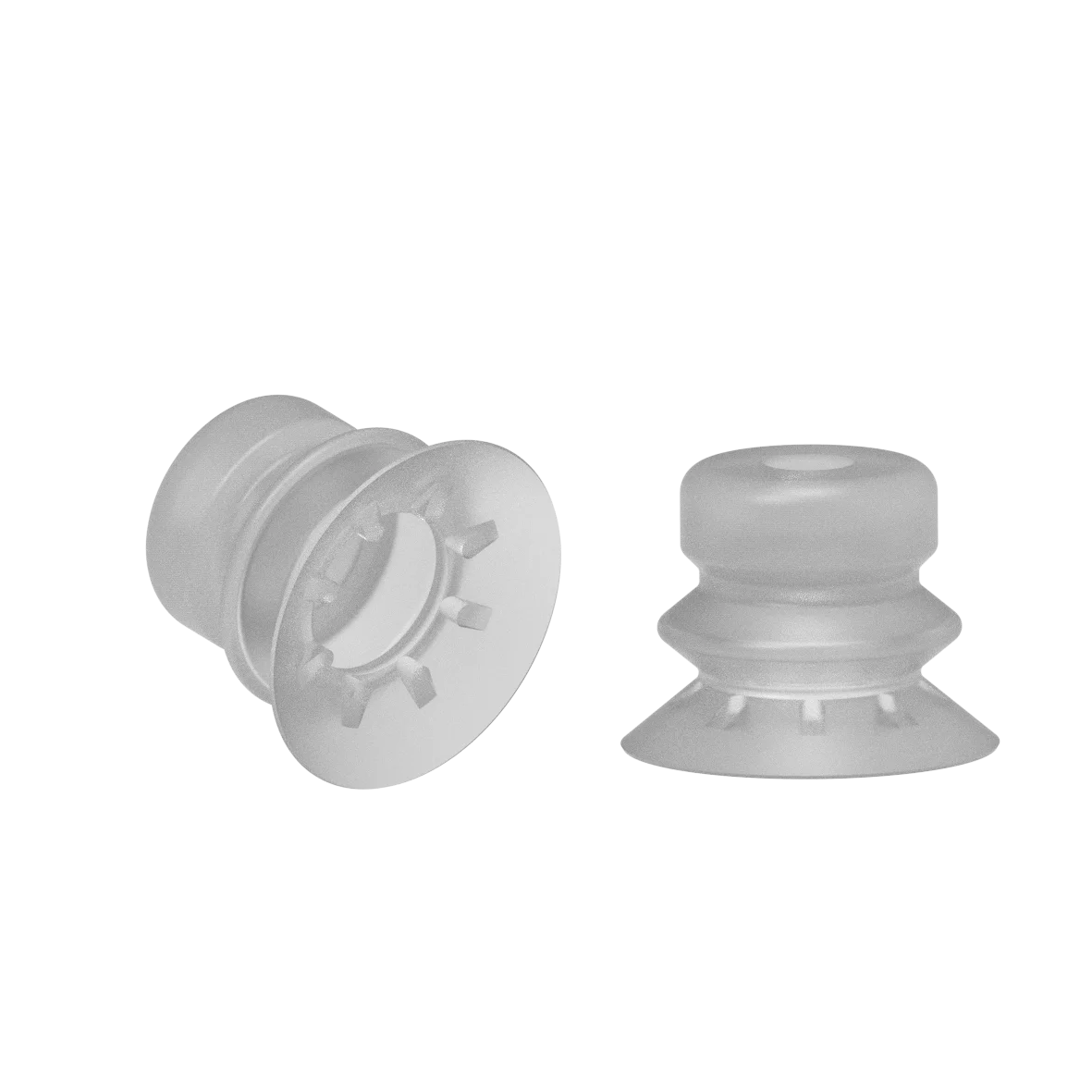

Bellows vacuum cup diam. 25 mm (1.5 bellows) silicone transparent
Manufacturer: FIPA GmbH (Germany)
bellow vacuum cup sbf a flexible lip 25 mm 1 5 bellows
<p>Bellows vacuum cup with soft, very flexible single sealing lip for handling highly sensitive products with high leveling adjustment.<br />
Connection with plugged, or fixed screwed nipple or attachment frame (Ø 80 mm). Compatible "snap-in" spring leveller available.</p>
<ul>
<li>Large holding force</li>
<li>Fine, flexible sealing lip fits in perfectly with irregularities of the product</li>
<li>Cleats for the sealing lip prevent retraction of flexible products (e.g. films)</li>
<li>Cost-effective replacement of worn seals</li>
<li>High process reliability due to fixed, non-rotating seat of the screw nipple</li>
</ul>
Price: $31.60 (FAMAGA 23.025.293.2)
Specifications
- Drawing
- B
- Model
- SBF-A -25
- Stroke
- 6.0 mm
- Number of folds
- 1.5
- Material / Color
- SI (tr)
- Ø D
- 25.0 mm
- Ø d1
- 17.0 mm
- Ø d2
- 6.0 mm
- Ø d4
- 11.6 mm
- H
- 19.0 mm
- Diameter
- 25.0 mm
- Cup material
- SI
- Ø d3
- 10.0 mm
- h1
- 4.0 mm
- G2 (male)
- --
- h3
- 2.0 mm
