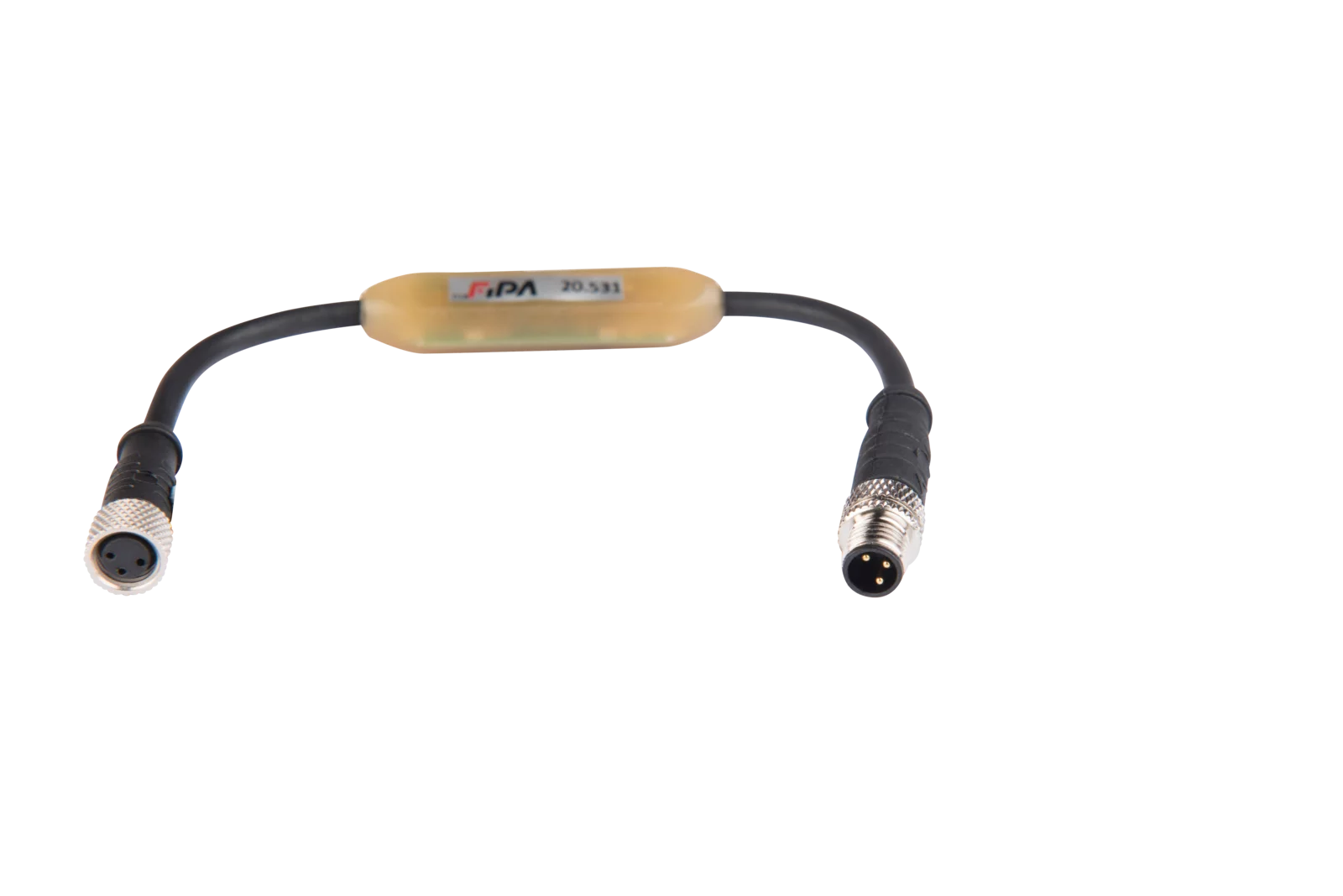

PNP-NPN signal converter/signal inverter M8 Vacuum Gripper
Manufacturer: FIPA GmbH (Germany)
signal converters m8 signal inverter m8
<ul>
<li>Signal converter/signal inverter comes in two types:<br />- PNP inverter <a href="https://fipa.com/en-DE/variant/20-530" target="_blank" rel="noopener">20.530</a> for grippers with indirect part detection<br />- PNP-NPN converter <a href="https://fipa.com/en-DE/variant/20-531" target="_blank" rel="noopener">20.531 </a>for using PNP sensors in NPN circuits</li>
</ul>
<ul>
<li>LEDs to display status and switching state</li>
<li>Using model <a href="https://fipa.com/en-DE/variant/20-530" target="_blank" rel="noopener">20.530 </a>with grippers with indirect part detection, enables signal activation if a part has been gripped</li>
<li>Recommended for use with grippers GR04.091, GR04.111A, GR04.130F</li>
</ul>
Price: $136.33 (FAMAGA 20.531)
Specifications
- Input signal
- PNP
- Output signal
- NPN
- Connection
- M8x1
- Max. ampacity
- 200 mA
- Operating voltage
- 10 - 35 VDC
- Current consumption (mA)
- < 20 mA
- Minimum pulse duration
- 0.1 ms
- Protection class
- IP67
- Weight (g)
- 17 g
- Ambient air temperature (C°)
- -20 - 70 °C
- Ambient air temperature (F)
- -4 - 158 °F
- Max. switching frequency
- 5000 Hz
