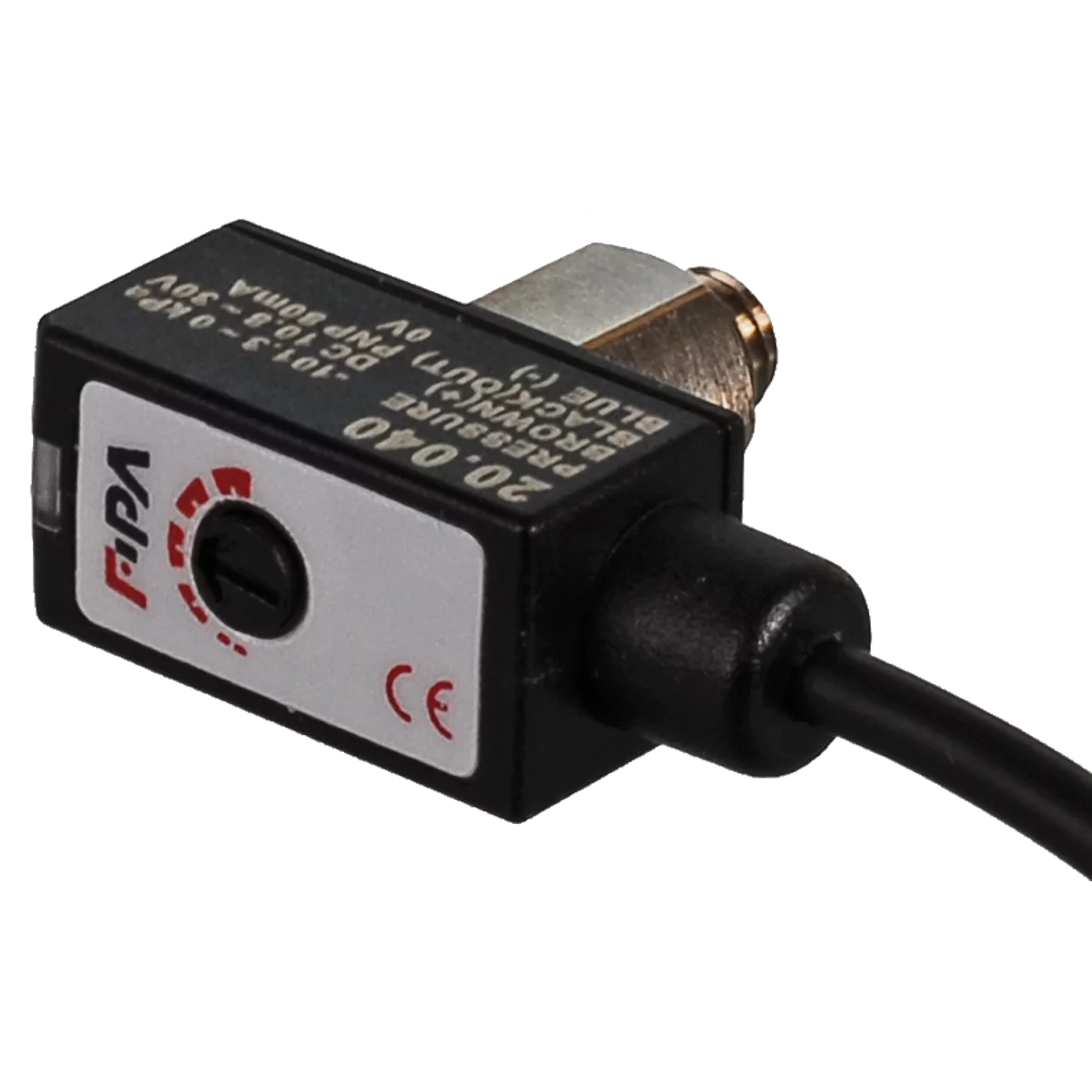

Digital mini vacuum switch, PNP function, measurement range: 0 to -1 bar
Manufacturer: FIPA GmbH (Germany)
mini vacuum switch electronic with digital output
directly mountable by M5 male thread,
digital switching exit PNP, adjustable setpoint,
directly rotatable using part,
Condition advertisement about one red LED.
overpressure max. 2 bar
cable 1.5 m,
IP40, weight 50 g incl. cable
Price: $129.41 (FAMAGA 20.040)
Specifications
- Weight (g)
- 20.0 g
- Operating temperature (°C)
- 0 - 60 °C
- Operating temperature (°F)
- 32 - 140 °F
- Protection class
- IP40
- Suitable media
- Filtered, oiled or unoiled air or neutral gases
- Hysteresis
- 3 % from default setting
- Adjustable range
- -990 - 0 mbar
- Adjustable range
- -14.4 - 0 psi
- Repeat accuracy
- ≤ ± 1 % from measuring range
- Digital switching outputs
- PNP
- Response time
- ~ 1
- Supply voltage (VDC)
- 10.8
- Max. current consumption
- 10.0 mA
- Vacuum connection
- M5
- Overpressure safety
- 2 bar
- Overpressure safety
- 29 psi
Documentation
