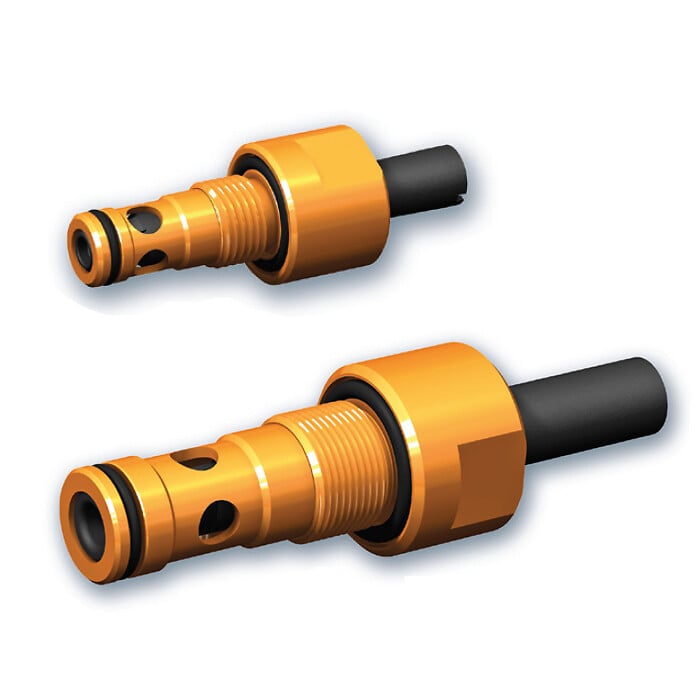

Vacuum Cartridges, CVP Series
Manufacturer: Coval (France)
Micro-ejectors / Vacuum cartridges
Coval CVP Series vacuum cartridges feature nozzle diameters of 1.2 to 2.7 mm, maximum vacuum of 85%, and air drawn in up to 7.59 SCFM. They weigh between 6 and 23 g and are made from materials like PA 6-6, brass, and aluminum.
Price: $198.80 (pneumaticspro.ca CVP90X12)
Specifications
- Nozzle Diameter
- 1.2 to 2.7 mm
- Maximum Vacuum
- 85%
- Air Drawn In
- up to 7.59 SCFM
- Weight
- 6 to 23 g
- Materials
- PA 6-6, brass, aluminum
- Operating Pressure
- 4.5 to 7 bar
- Control Voltage
- 24 V DC
