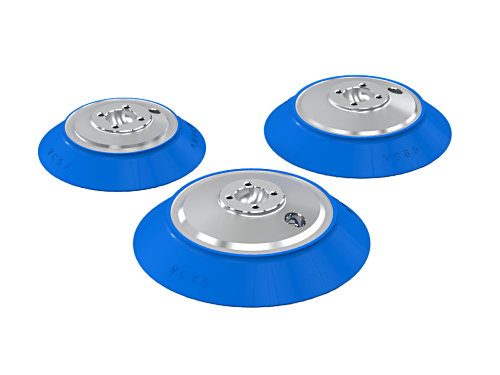

VC series (bonded seal)
Manufacturer: ANVER Corporation
Round pad, rubber bonded to Al base
The VC series vacuum cups by ANVER Corporation feature a rugged design with rubber bonded to a machined aluminum base, making them suitable for high-duty applications in industries such as automotive. They are available in various sizes and materials, including Nitrile and Extreme High Heat Silicone.
Price: $325.00 (Unique Lift Parts VC126NBR)
Specifications
- Series
- VC25, VC35, VC40, VC45
- Material
- NBR (Nitrile), Extreme High Heat Silicone
- Diameter
- 2.75 in (70 mm) for VC25, 3.75 in (95 mm) for VC35, 4.00 in (100 mm) for VC40, 4.63 in (118 mm) for VC45
- Height
- 1.0 in (25.4 mm) for VC25, 1.38 in (35 mm) for VC35, 1.18 in (30 mm) for VC40, 1.61 in (41 mm) for VC45
- Load Capacity
- 15 lb (6.8 kg) for VC25, 30 lb (13 kg) for VC35, 45 lb (20 kg) for VC40, 55 lb (24 kg) for VC45
- Connection/Thread
- 1/4" NPT for VC25, 3/8" NPT for VC35, VC40, VC45
- Weight
- 0.09 lb (0.04 kg) for VC25, 0.15 lb (0.07 kg) for VC35, 0.18 lb (0.08 kg) for VC40, 0.34 lb (0.15 kg) for VC45
- Flex
- 0.26 in (7 mm) for VC25, 0.33 in (8 mm) for VC35, 0.38 in (10 mm) for VC45
- Flat
- 0.98 in (25 mm) for VC25, 0.98 in (25 mm) for VC35, 0.95 in (24 mm) for VC40, 1.26 in (32 mm) for VC45
